Insulation Anchor Plus 70mm for EPS & XPS Boards - Pack of 200

Code:
AF-DOWEL-THERM-DPLUS-10/070-Z
Brand:
Free UK Delivery

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane. Properties Length: 70mm. Sleeve diameter: 10mm. Coverage: 8-12 pieces per m2. Material: polypropylene sleeve with plastic nail. Tension l... Read More

Create a wishlist

"Great service"

Catherine

Description

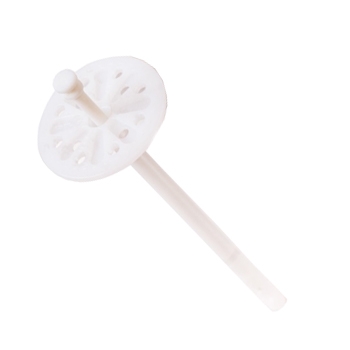

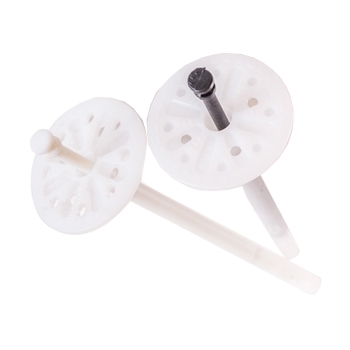

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane.

Properties

Length: 70mm.
Sleeve diameter: 10mm.
Coverage: 8-12 pieces per m2.
Material: polypropylene sleeve with plastic nail.
Tension load:
Concrete: 0.6kN - anchoring depth min. 50mm.
Solid brick: 0.4kN - anchoring depth min. 50mm.
Hollow or perforated masonry: 0.3kN - anchoring depth min. 50mm.
Box quantity: 200x anchors.
Range: Thermomaster D Plus - stronger and offers higher performance.

There are no product specifications to show.

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Can these be used to fix Recticel or Kingspan to plastered hollow bricks?

Answer:

These fixings in particular are designed to be used exclusively with EPS and XPS boards, as to minimize the damage when the fixings go through the material into the wall.
