Insulation Anchor Plus 220mm for EPS & XPS Boards - Pack of 100

Code:
AF-DOWEL-THERM-DPLUS-10/220-Z
Brand:

This item is out of stock and not available to purchase.

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane. Properties Length: 220mm. Sleeve diameter: 10mm. Coverage: 8-12 pieces per m2. Material: polypropylene sleeve with plastic nail. Tension ...Read More

Create a wishlist

"Great product at reasonable price."

Gary S

Description

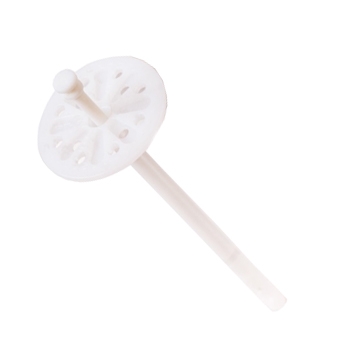

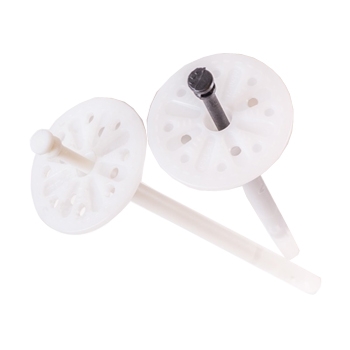

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane.

Properties

Length: 220mm.
Sleeve diameter: 10mm.
Coverage: 8-12 pieces per m2.
Material: polypropylene sleeve with plastic nail.
Tension load:
Concrete: 0.6kN - anchoring depth min. 50mm.
Solid brick: 0.4kN - anchoring depth min. 50mm.
Hollow or perforated masonry: 0.3kN - anchoring depth min. 50mm.
Box quantity: 100x anchors.
Range: Thermomaster D Plus - stronger and offers higher performance.

Dimensions

Length 220mm

Details

Diameter 10mm Pack Size Pack of 100
