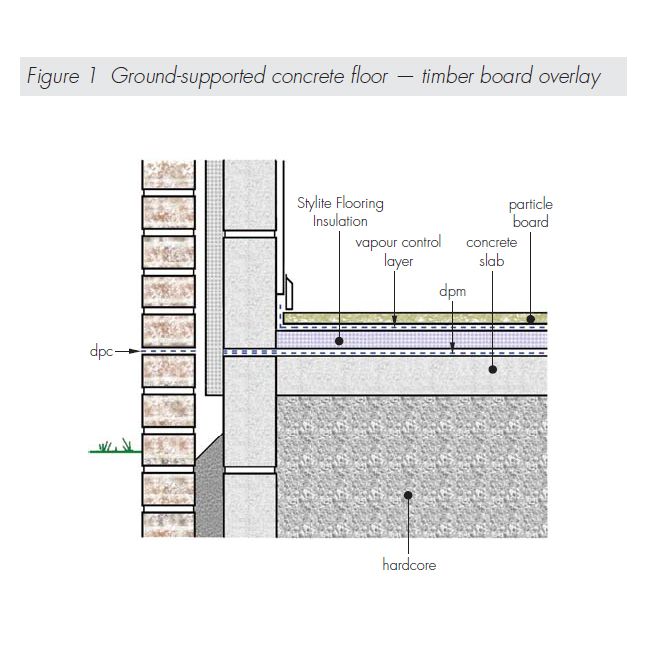

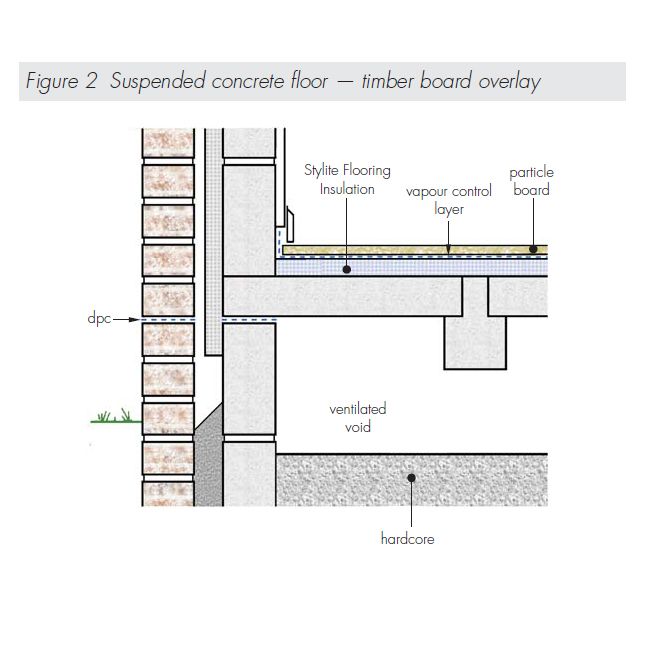

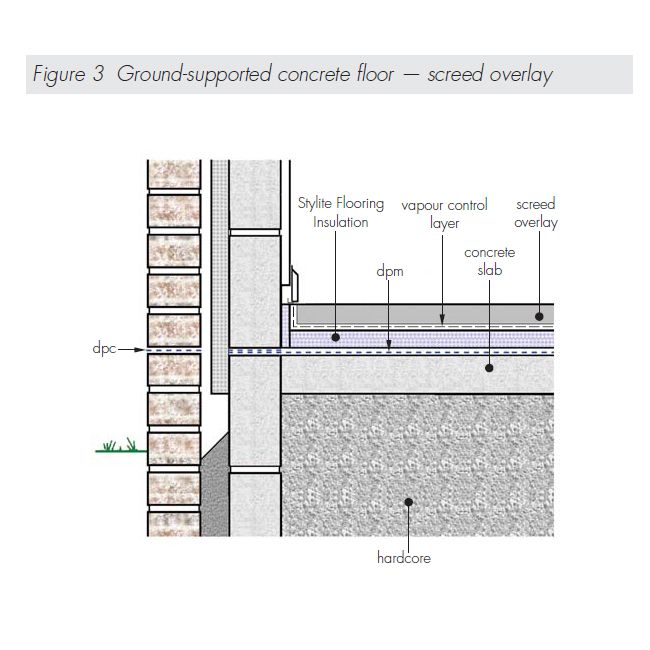

Stylite Floor Insulation can be used in a wide variety of floor applications both domestic and industrial to satisfy the current building regulations and U-value requirements. The most common applications are below a concrete slab, a screen or a chipboard floor finish. The insulation boards are extremely easy to install and are available in range of grades and sizes to suit your individual requirements. We can also provide you with a free consultation including U-value calculation to suit your specific floor configuration. If this is something that is required please feel free to contact our team on : 01752 692206.
Length: 2.4m.
Width: 1.2m.
Thickness: 100mm.
Pack quantity: 3x boards.
Pack coverage: 8.64m2.
Thermal conductivity: 0.038 W/mK.
Thermal resistance: 26.32 mK/W.
Compressive strength: 70kPa at 10% compression.
Stylite insulation products are manufactured from expanded polystyrene (Stylite white EPS) and carbonenriched expanded polystyrene (Stylite Plustherm grey EPS). The material comprises expandable beads of prefoamed polystyrene which are fused together to produce a block material. The block is cut to size and shape on a computerised hot wire cutting bed.
Question:
Can your 70kPa 100mm board be used under a floating floor in a small bathroom (4m X 2m) - build up will be: Continuous DPM - 100mm Concrete - 100mm EPS - 18mm T&G Cement Board - (Underfloor electric heating) - 12mm slate tiles
Answer:
Yes, the Stylite EPS 70 Polystyrene Floor Insulation Board 100mm can indeed be used under a floating floor in a small bathroom with the build-up you've described. Its properties make it suitable for a wide variety of floor applications both domestic and industrial, including below a concrete slab, a screed, or a chipboard floor finish. However, I would recommend double-checking with your flooring and underfloor heating suppliers to ensure compatibility with their products. If you need more information about the Stylite EPS 70, please feel free to view the BBA Certificate or the product page on our website.
