Jablite Jabfloor EPS100 Polystyrene EPS Insulation Board 2400 x 1200 x 100mm 17.28m2 Pack

Code:
STO2837
Brand:

Ideal for uses in offices and schools, Jabfloor 100 is a floor insulation board that achieves the required U-value and compressive performance across a range of floor applications. It is white with a pink and black speckled finish and is a cost-effective insulation option, int... Read More

Create a wishlist

"Thank you very much delivered on t…"

Ross

Description

Ideal for uses in offices and schools, Jabfloor 100 is a floor insulation board that achieves the required U-value and compressive performance across a range of floor applications. It is white with a pink and black speckled finish and is a cost-effective insulation option, intended to last for the life of the building.

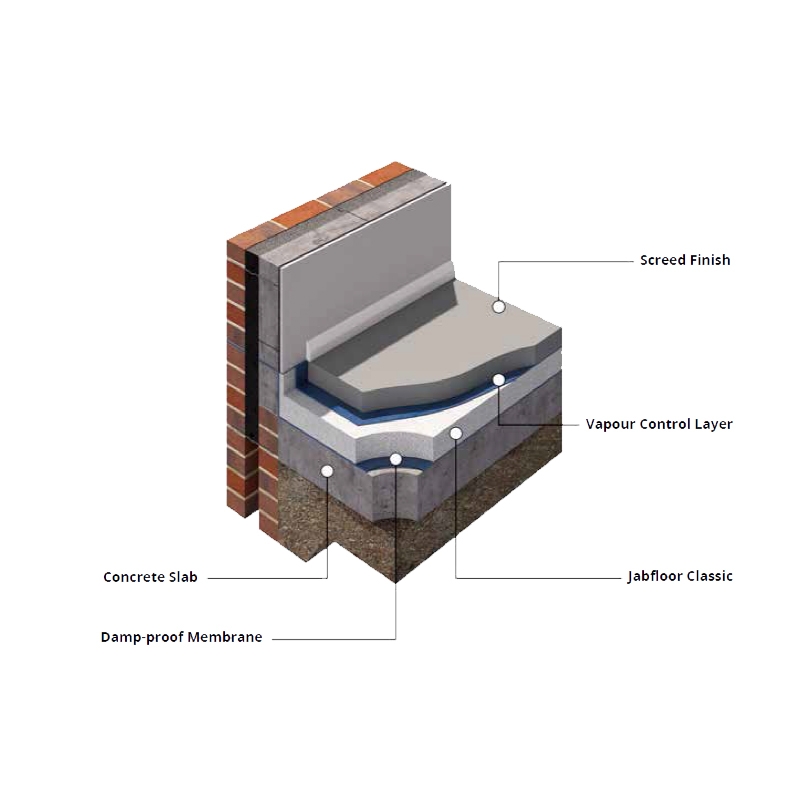

Flood-proof, lightweight and easy to handle, it can be implemented below ground supported slab, above slab when below chipboard or screed and with precast suspended concrete. It can also be used in cold store applications.

Features & Benefits: Jablite Jabfloor EPS100 Polystyrene EPS Insulation Board 2400 x 1200 x 100mm 17.28m2 Pack

  • 0.036W/mK Thermal Conductivity
  • 2.4m length x 1.2m width x 100mm thickness
  • Boards coverage of 2.88m²
  • Pack coverage of 17.28m²
  • Six boards per pack
  • Excellent compression properties
  • 100% recyclable
  • Flood-proof, non-toxic and biologically inert
  • Installed with ease due to lightweight structure

Jabfloor is also non-toxic and biologically inert, as well as completely recyclable.

It is not mandatory for solid ground floors to provide fire resistance. If Jabfloor is installed appropriately, it is safeguarded by the screed floor finish and will not negatively impact the building's fire performance in any way.

Standards & Certification

  • Certification: BBA Certified
  • Rating: A+ in the BRE Green Guide to Specification

Please note:

  • Available with Class E fire retardant additive. Call our sales team to discuss this.

Dimensions

Length 2400mm Depth 100mm Width 1200mm

Details

Thickness 100mm Application Floors Material EPS Range Jabfloor 100
Board Size 1200mm x 2400mm

Questions & Answers

Question:

Does this comply with building regs for insulating between rafters on a pitched and tiled roof?

Answer:

This product is designed to be used in flooring applications rather than in a roof, you'd be better off using standard PIR if at all possible.

Question:

Can this be used for a garage floor below the concrete slab? What is the compression strength?

Answer:

EPS 100 is perfectly suitable for use under a concrete slab, provided you follow the guide here, there is no reason to say why you couldnt use it for that purpose - https://www.insulationsuperstore.co.uk/help-and-advice/project-guides/insulation/insulating-a-floor/
