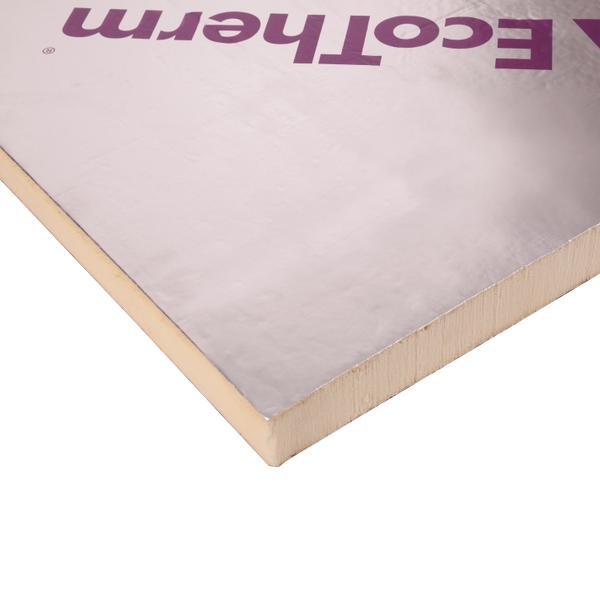

EcoTherm Eco-Versal PIR Insulation Board - 2.4m x 1.2m x 30mm

Code:
STO2354
Brand:
Free UK Delivery

Developed, manufactured and supplied by EcoTherm throughout the UK, this Eco-Versal general-purpose insulation board is made from a fibre-free rigid polyisocyanurate (PIR) insulation core. It also features composite aluminium foil facings on both sides. Ideal for use in ceiling... Read More

Create a wishlist

"Excellent service and product"

George Ullrich

Description

Developed, manufactured and supplied by EcoTherm throughout the UK, this Eco-Versal general-purpose insulation board is made from a fibre-free rigid polyisocyanurate (PIR) insulation core. It also features composite aluminium foil facings on both sides.

Ideal for use in ceilings, pitched roofs, walls and floors, this PIR insulation board is suitable for use in a new build or when you're upgrading the thermal performance of your existing floors.

Features & Benefits: EcoTherm Eco-Versal PIR Insulation Board - 2.4m x 1.2m x 30mm

  • 2.4m length x 1.2m width x 30mm thickness
  • High performance with minimal thickness
  • 3.8m²K/W rValue
  • 3.83kg weight per board
  • Easy to lay, cut and install due to rigid structure
  • 0.022W/mK thermal conductivity to BS EN 12667
  • BBA certified
  • Euroclass F spread of flame

Standards & Certification

  • Spread of flame: Euroclass F
  • Thermal conductivity: 0.022W/mK to BS EN 12667
  • Certification: BBA certified

Details

Thickness 30mm Application Ceiling
Floors
Walls
Pitched Roofing
Material PIR Range Eco-Versal
Board Size 1200mm x 2400mm

Questions & Answers

Question:

Hi Can this board be laid under a floor screed and is it load bearing ? What is the maximum load permissible?

Answer:

Hi Justin,

I wouldn't recommend this be laid directly under screed, as the aluminium foil facing would react poorly to the screed so I would suggest a polythene layer to cover it first.

The compressive strength is 120kpa.
