Jablite Jabfloor EPS100 Polystyrene EPS Insulation Board 2.4m x 1.2m x 75mm 23.04m2 Pack

Code:

STO2836

Brand:

Ideal for all floor constructions across domestic and commercial buildings, Jabfloor Insulation comes in different grades to suit different projects. While Jabfloor 70 is best used with domestic floors, this Jabfloor 100 Polystyrene Insulation Board is fantastic for commercial...Read More

View full product details

View questions about this product

£199.97 Incl. VAT

Est. Delivery: 2-3 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

London Multi Skills

Description

These insulation boards are white with a speckled pink and black finish, and include an expanded polystyrene (EPS) structure. They are light in weight which makes for easy on-site handling, as well as durable, rot-proof and flood-proof to work efficiently for the duration of your building.

Features & Benefits: Jablite Jabfloor EPS100 Polystyrene EPS Insulation Board 2.4m x 1.2m x 75mm 23.04m2 Pack

2.4m length x 1.2m width x 75mm thick
2.88m² board coverage
For commercial floors that are liable to encounter higher loadings
High in durability
Rot-proof and flood-proof
Eight boards in a pack
23.04m² pack coverage
Thermal conductivity: 0.038 W/mK

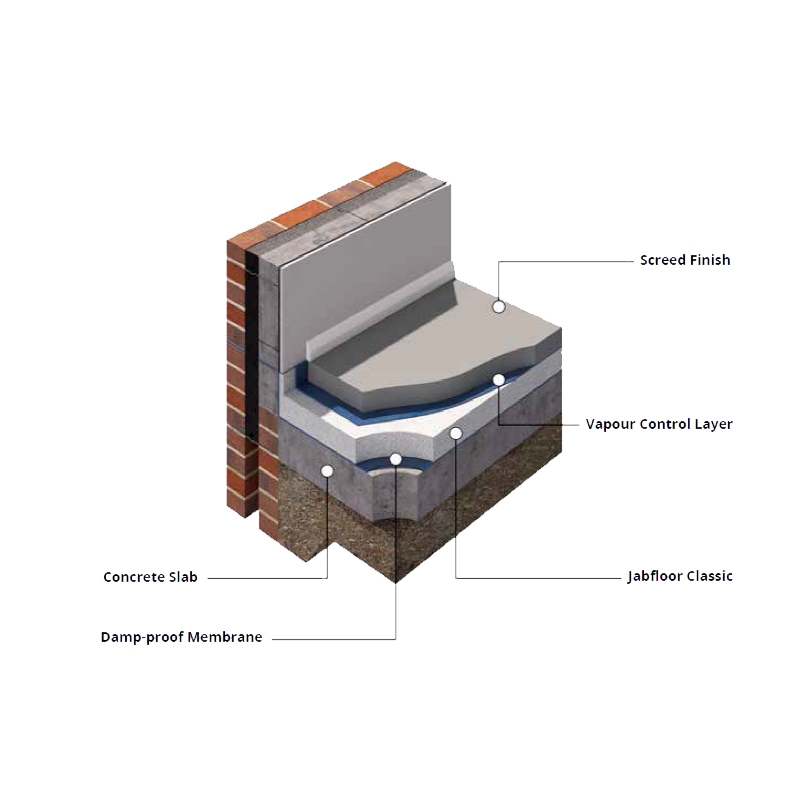

You can place this Jabfloor insulation above a concrete slab or a pre-cast concrete floor in ground-floor constructions and finish it with a wearing layer of chipboard to appropriate U-value constraints. It can also be positioned below ground supported slab, suspended concrete and timber floors, and screed.

Standards & Certification

Certification: BBA certified

Please note:

Jabfloor insulation is a building-grade material and is not completely white in appearance.
Jabfloor insulation is available in higher grades up to Jabfloor 250 which may be required in specialist industrial and commercial applications.
Solid ground floors are not required to provide fire resistance. When installed correctly, the EPS insulation is fully protected by the chipboard and will have no adverse effect on the fire performance of the floor. Euroclass E, flame retardant material, is available to order. Please contact our team if this is required.

Specification

Dimensions

Length 2400mm Depth 75mm Width 1200mm

Details

Thickness 75mm Application Floors Material EPS Range Jabfloor 100

Board Size 1200mm x 2400mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

How thick to match celotex GA300 75mm?

Answer:

Due to the composition of the material, the thermal conductivity will always be slightly better on PIR but to meet the approximate same thermal resistance you'd need around a total thickness of 120/130mm overall.

Question:

Hello are you delivering to LE174NW, and time frame if you are, regards Adam.

Answer:

Hello, cannot supply Jablite at the moment sorry
