YBS SuperQuilt Multi-layer Foil Insulation Blanket - 1.5m x 5m Roll

Name: YBS SuperQuilt Multi-layer Foil Insulation Blanket - 1.5m x 5m Roll
Brand: YBS Insulation
SKU: YBS002
Availability: Discontinued

Code:

YBS002

Brand:

YBS Insulation

This item is out of stock and not available to purchase.

View alternative products

View full product details

View questions about this product

Create a wishlist

Description

SuperQuilt multilayer insulation by YBS is a lightweight and flexible insulation for roofs, walls and floors. Due to it's flexibility it is an easy to fit, multifoil insulation that offers tremendous thermal benefits. Thermal testing to EN16012 confirms high core thermal resistance of 1.52m²K/W.

Due to the special composition of multi-layers of insulation SuperQuilt effectively deals with all forms of energy transfer (i.e. conduction, convection and radiation). SuperQuilt works most effectively by reflecting infra-red radiation.

This means that not only is SuperQuilt effective in winter by reflecting heat back into the building and cold out, but also in summer SuperQuilt is a very effective solar over heating barrier reducing the need for artificial cooling systems, preventing uncomfortable heat build up in the roof. The introduction of a unique method of stitching reduces cold bridging commonly seen with other multi-foil insulation material.

Properties

Length : 5m.
Width : 1.5m.
Roll size : 7.5m2.
Thickness : 40mm.
Weight : 800g/m2.
Roll weight : 13.5kg.
Thermal resistance
Core : 1.52 m²K/W.
Core + airspaces : up to 2.50 m²K/W.
Fire resistance : Class E - BS EN 13501-1.
Water vapour resistance : 1569 MNs/g.

Application

For roofs :

YBS SuperQuilt can be used over rafters, under rafters, between and around purlins, as part of a two layer applications and when all joints are sealed using foil SuperQuilt can also work as a vapour control layer.

For walls :

YBS SuperQuilt can be used with timber frames, cavity walls, dry lining, dwarf walls, dormer cheeks and external walls.

For floors :

YBS SuperQuilt can also be used with suspended timbers, crawl spaces and floating timbers.
Installation

Installation of SuperQuilt for pitched roof applications and additional insulation products should be in accordance with the manufacturers certificate, fixing instructions and current good building practice.

SuperQuilt must be installed with a 50mm overlap with all joints taped with YBS 75mm foil tape.

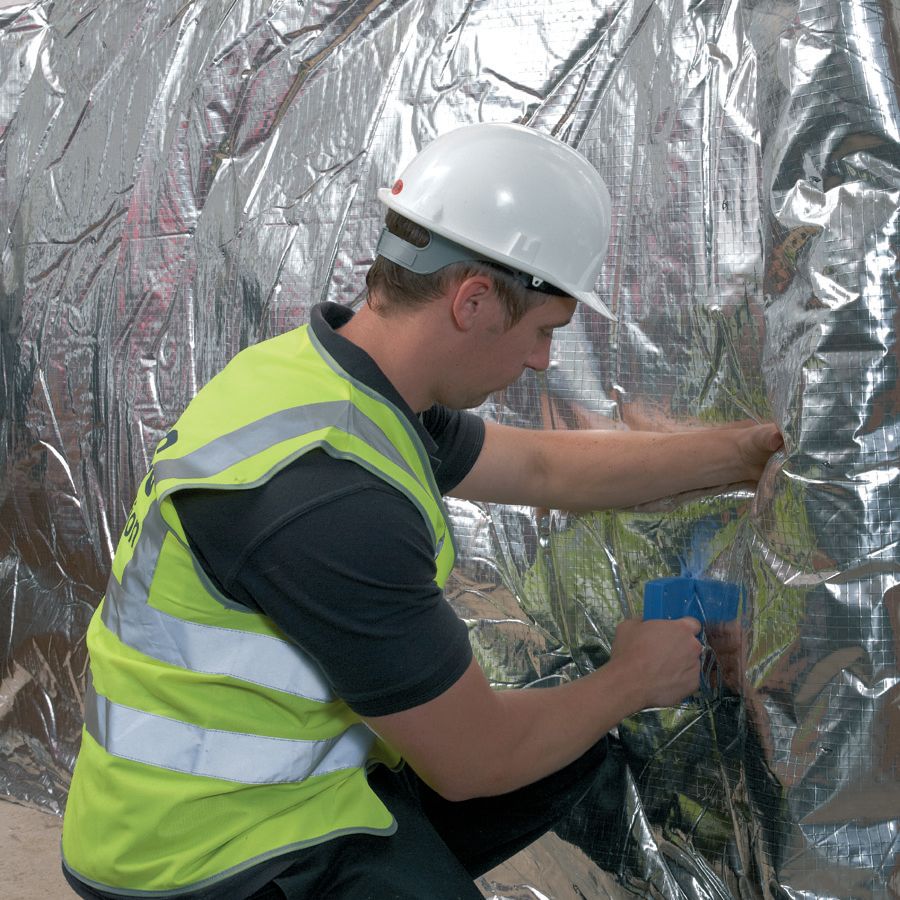

SuperQuilt can be cut with a YBS SuperQuilt cutter, craft knife or a sharp pair of scissors.

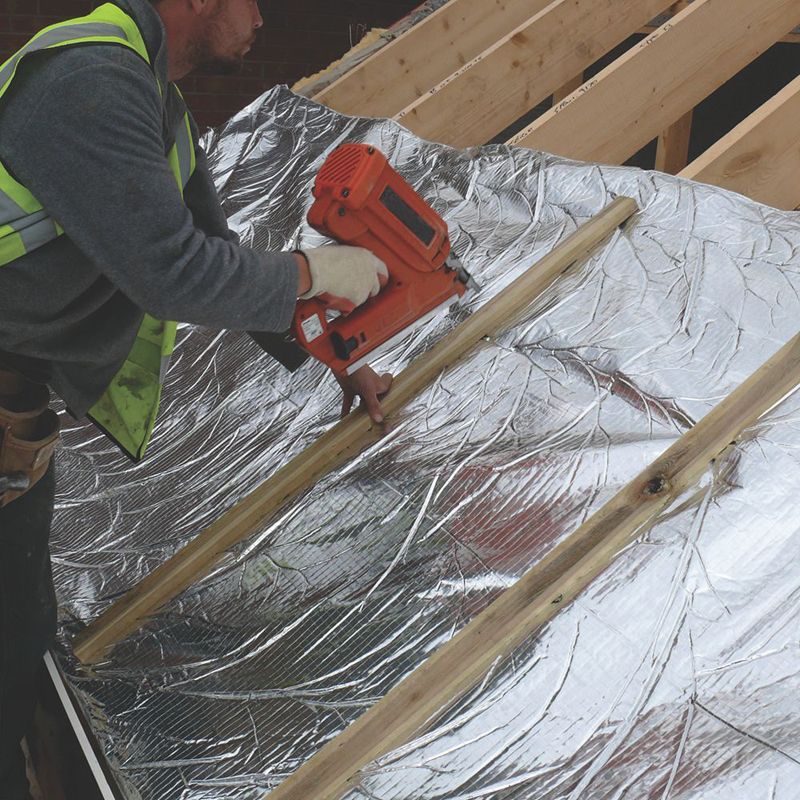

SuperQuilt can be easily fixed with staples at regular intervals. Minimum 14mm stainless steel or galvanised staples are recommended.

SuperQuilt is most effective with a minimum 25mm air gap on either side. Battens can be used to create this gap. No protective clothing or handling is required.

Guarantee

SuperQuilt is guaranteed for the lifetime of the product's installation, when installed in accordance with the manufacturer's certification, fixing instructions and current good building practice.
Terms and conditions apply. Full details available on request.

Features

Meets requirements of L1A, L1B 2010.
In accordance with BR443.
NHBC Acceptance.
Pitched roof insulation.
Full Agrément certification.
Thermally tested in accordance with EN16012.
Class E Fire Resistance.
Ideal for New build & Refurbishment.
Effective solar over-heating barrier.
Lightweight, flexible & 40mm thin.
Fast and simple installation.
Vapour control layer.

YBS SuperQuilt Multi-layer Foil Insulation Blanket - 1.5m x 5m Roll

This product has been discontinued.
