Xtratherm Thermal Liner MechFix Wall Insulation - 2.4m x 1.2m x 72.5mm

Name: Xtratherm Thermal Liner MechFix Wall Insulation - 2.4m x 1.2m x 72.5mm
Brand: Xtratherm
SKU: XT TL-MF/72.5
Availability: LimitedAvailability

Code:

XT TL-MF/72.5

Brand:

Xtratherm

This item is out of stock and not available to purchase.

View alternative products

View full product details

View questions about this product

Create a wishlist

Mr Norris

Description

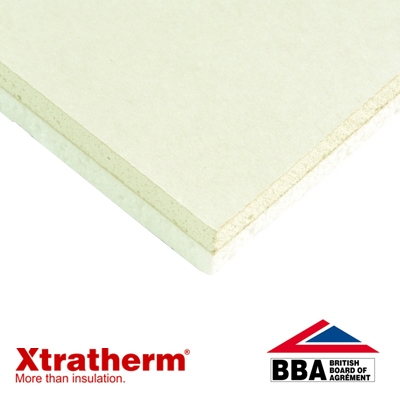

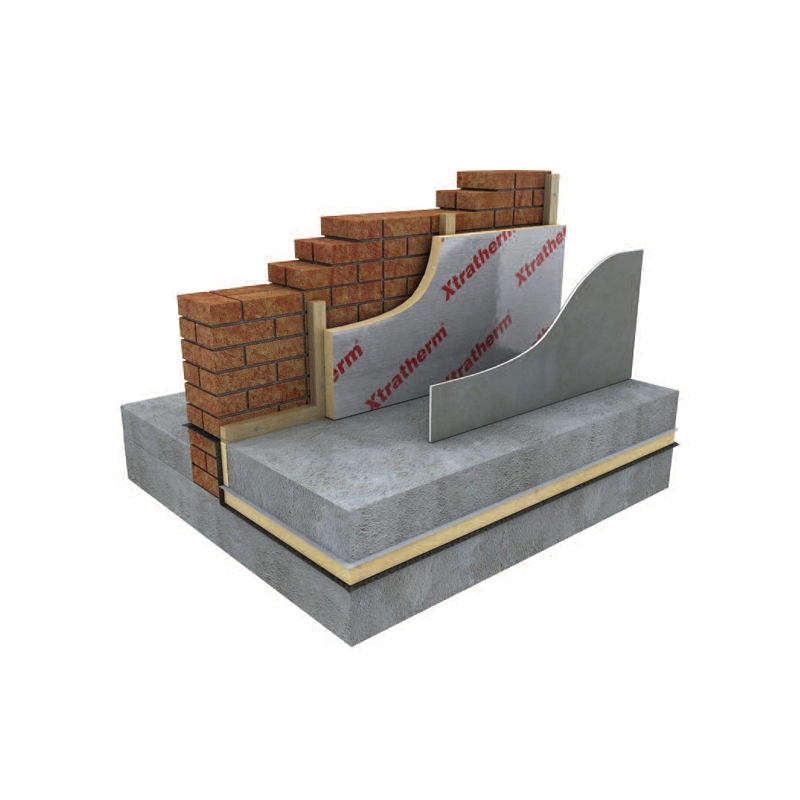

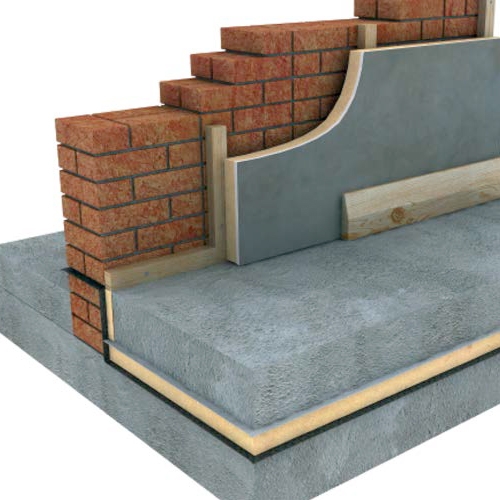

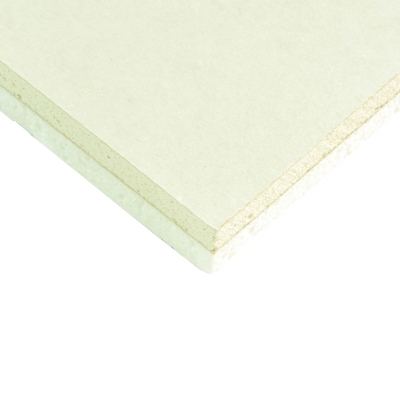

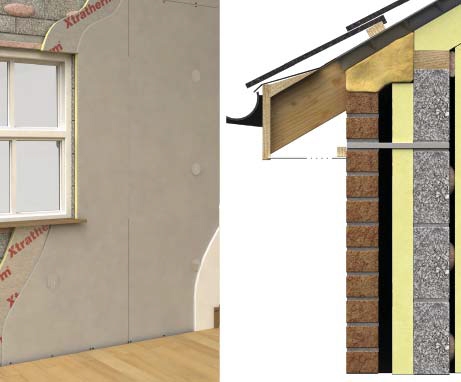

Xtratherm Thin-R XT/TL-MF Thermal Liner is a composite insulated panel of Xtratherm Polyiso (PIR) core with foil faces bonded to 12.5mm tapered edge plasterboard for mechanically fixing to internal walls. XT/TL-MF is designed to provide high levels of thermal insulation and dry lining in one operation for suitable masonry walls, sloped rafters and ceilings in new build and refurbishment situations. XT/TL-MF is only suitable for mechanical fixed applications.

Insulation for drylining walls mechanically fixed to battens.
Includes an integral vapour control layer.

Properties

Length: 2.4m.
Width: 1.2m.
Coverage: 2.88m2.
Insulation thickness: 60mm.
Plasterboard thickness: 12.5mm.
Total thickness: 72.5mm.
Edging: tapered edge.
Thermal conductivity: 0.022 W/mK.
Surface spread of flame: Class 1.
Certification: BBA certified.
Compressive strength: 140kPa.

Integral vapour control layer

The facing on Xtratherm boards provide a gas and vapour tight barrier, taping the joints between the aluminium facing, or taping and filling the joints on plasterboard finishes in accordance with drylining good practice, will result in a vapour control layer being created.

Cutting

Xtratherm Thin-R can be readily cut using a sharp knife or fine toothed saw. Ensure tight fitting of the insulation boards to achieve continuity of insulation as asked for in accredited details.

Storage

Xtratherm Thin-R should be stored off the ground, on a clean, flat surface and must be stored under cover. The polythene wrapping is not considered adequate protection for outside exposure.

Specification

Dimensions

Length 2400mm Width 1200mm

Details

Thickness 72.5mm Edging Tapered Edge Facing Plasterboard Application Internal Walls

Features Vapour Control
