Single Bubble Single Foil UFoil Insulation 1BDA-1 - 1.2m x 25m x 4mm

Code:
1BD/A-1
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

Ideal for boosting thermal performance, this Single Foil Single Bubble Ufoil insulation utilises one layer of polyethylene bubbles coated with aluminium foil on one side. Ufoil insulation materials are designed for use when insulating roofing, wall, and flooring applications. ... Read More

£54.97 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: TBC
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
Create a wishlist

"Great service"

Peter Robertson

Description

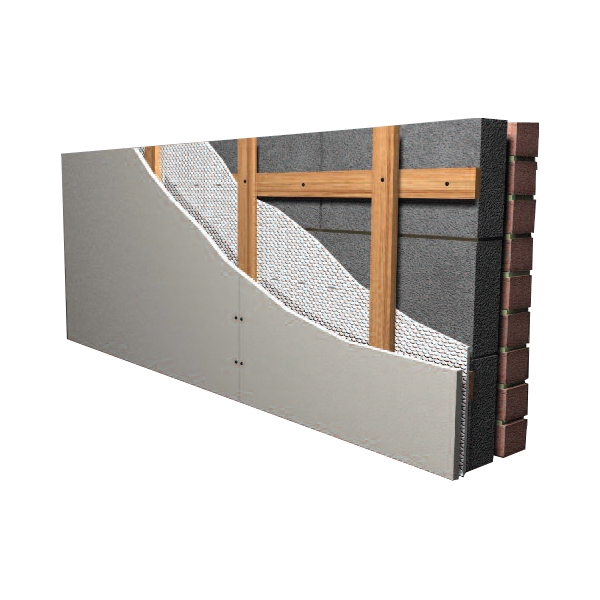

Ideal for boosting thermal performance, this Single Foil Single Bubble Ufoil insulation utilises one layer of polyethylene bubbles coated with aluminium foil on one side. Ufoil insulation materials are designed for use when insulating roofing, wall, and flooring applications.

Ufoil is designed to operate by reflecting up to 95% of radiant heat. The thermal performance Ufoil provides is not affected by moisture or condensation, and the product consists of a corrosion resistant coated, low emissivity aluminium foil. This foil is then backed by a multi-layer air bubble film.

Features & Benefits: Single Bubble Single Foil UFoil Insulation 1BDA-1 - 1.2m x 25m x 4mm

  • 25m length x 1.2m width x 4mm thickness
  • Roll size of 30m²
  • Single foil to one side
  • Nominal weight of 206gsm
  • >150 MNs/g water vapour resistance
  • Thermal resistance of 1.58m²K/W (includes 25mm air gap to each face)
  • For use in roof, walls and floor applications
  • Can boost thermal performance
  • Operates by reflecting up to 95% of radiant heat

Specialised cavity wall ties with piercing ends are available for bubble/foil insulation and come in two unique designs, as well as include plastic retaining clips to secure after installation. Wall ties allow for the insulation to be placed flush against the blockwork and ties situate it 25mm from the face of the block with three lengths for 60-100mm cavities. Made of corrosion-resistant stainless steel with safety ends, ties have multiple drips to guarantee at least one stays in the cavity.

While horizontal joints are weather lapped, it is required to lap and tape all vertical joints with aluminium adhesive tape.

Standards & Certification

  • Fire rating: Class 1 to BS476

Dimensions

Width 1.2m

Details

Thickness 4mm Application Floors
Roof
Walls
Material Foil Roll Size 1.2m x 25m
