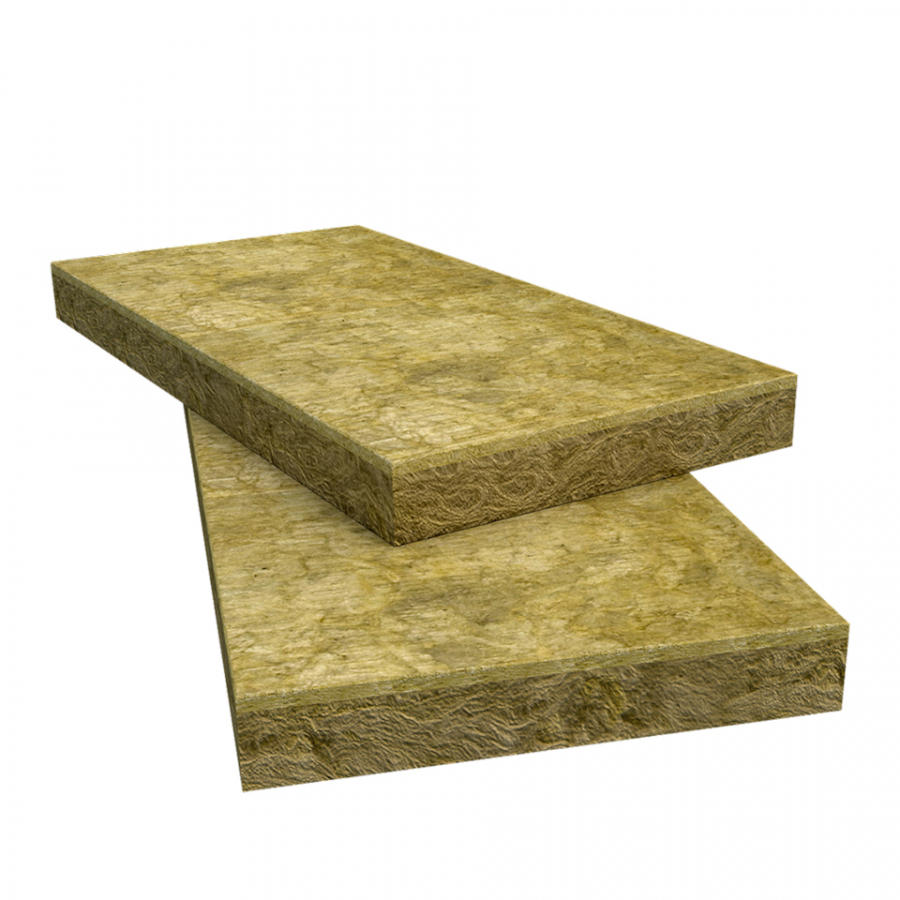

ROCKWOOL Rainscreen Duo Slab Insulation 170mm - 23.04m2 Pallet

Code:
248930
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

ROCKWOOL Rainscreen Duo Slab is a dual-density A1 non-combustible (BRE tested and BBA approved) insulation specifically developed for use within ventilated cladding systems, as well as sealed systems such as curtain walling. Once installed, the robust outer surface of the slab...Read More

Create a wishlist

"Great service."

Gavin McKenzie

Description

ROCKWOOL Rainscreen Duo Slab is a dual-density A1 non-combustible (BRE tested and BBA approved) insulation specifically developed for use within ventilated cladding systems, as well as sealed systems such as curtain walling. Once installed, the robust outer surface of the slabs, in combination with a factory-applied water repelling agent, acts to resist rain ingress during construction.

The product can be easily fitted around brackets and other awkward details, and when tightly butt jointed the fibres of adjacent slabs will knit together to provide a continuous thermal performance – eliminating heat losses that could otherwise be caused by gaps and joints.

Its unique dual-density construction also means that RAINSCREEN DUO SLAB requires fewer fixings, making it a cost-effective solution that is quick to install.

The product can be supplied with an aluminium or black tissue facing, to discuss this option please call our Order Helpline - 01752 692 206

Advantages of ROCKWOOL Rainscreen Duo Slab

  • Designed for use on high rise buildings
  • Water-repellent: Fibres impregnated with a water repelling agent during manufacture
  • Fewer fixings required for installation compared to standard stone wool slabs
  • Cost effective solution
  • Robust front face resists damage and over-driving of fixings

Specification

Length: 1200mm
Width: 600mm
Thickness: 170mm
Coverage: 23.04m2
Thermal Conductivity: 0.035 W/mK
Fire Properties: A1 (BS EN 13501-1)
Water Vapour Resistance: 5.9 MNs/gm
Compliance: BS EN 13162, ISO 14001

Dimensions

Length 1200mm Width 600mm

Details

Thickness 170mm Thermal Conductivity 0.035 W/mK Features Fire Protection Product Type Slab
Fire Performance Euroclass A1 Material Mineral Wool

Questions & Answers

Question:

Once pack is open, can the product get wet and still be useable?

Answer:

If ROCKWOOL Stone Wool insulation gets wet then it should be allowed to dry naturally and it will continue to perform; however, if it becomes damaged or compressed whilst wet then it should be replaced.

Question:

How easily can the slabs be cut?

Answer:

It is very easy to cut ROCKWOOL slabs, a sharp straight blade or insulation saw should be used.

Question:

How are the slabs fixed in between studs/joists/rafters?

Answer:

Slabs used for timber framed applications are designed to friction fit between the timber and do not need extra fixings.
