Home Insulation Acoustic Insulation JCW Acoustic Batten Levelling Cradles - Box of 250

JCW Acoustic Batten Levelling Cradles - Box of 250

Code:
1023
Brand:
JCW Acoustics

The JCW Acoustic Batten Levelling Cradles provide a reliable, high-performance solution for levelling uneven sub-floors while delivering excellent acoustic control. Precision moulded from recycled polypropylene, each cradle fits neatly over the Acoustic Pad to support timber b... Read More

View full product details
Ask a question about this product
£222.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Feb 9th - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
Ask a question about this product
Create a wishlist

"Great service and delivery spot on!"

scott wilson
Description Specification Downloads Q&A

Description

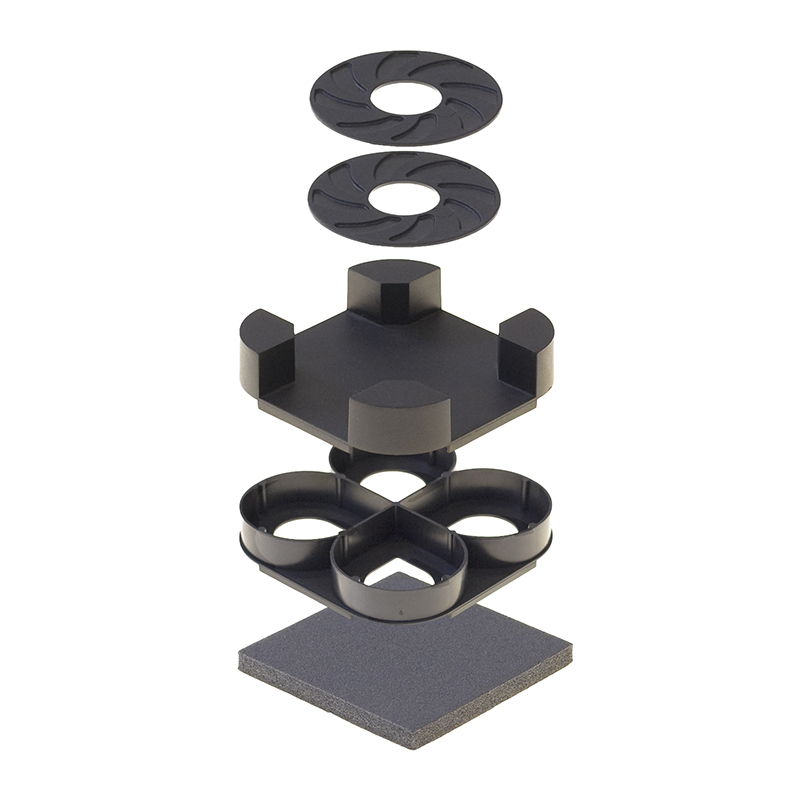

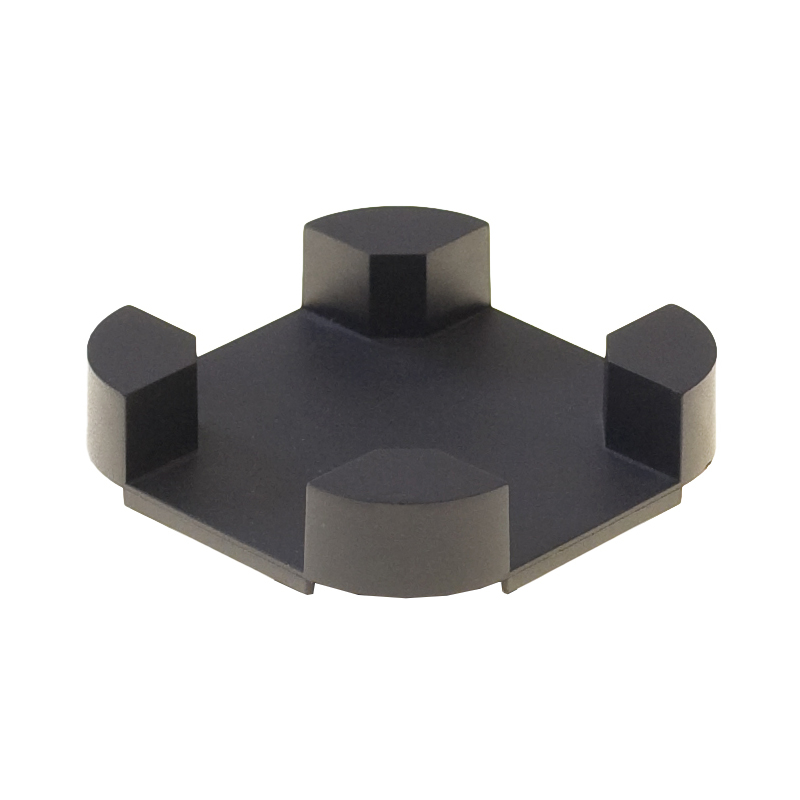

The JCW Acoustic Batten Levelling Cradles provide a reliable, high-performance solution for levelling uneven sub-floors while delivering excellent acoustic control. Precision moulded from recycled polypropylene, each cradle fits neatly over the Acoustic Pad to support timber battens up to 47mm wide, creating a stable base for the flooring deck. By acoustically isolating the bearing surface from the structural floor, the system significantly reduces the transmission of both impact and airborne sound through concrete floors.

Used alone, the cradles provide height increments of 11mm, and in combination with 2mm packing shims, allow precise final adjustment. Suitable for concrete, steel-concrete composite and timber floors, the system supports a wide range of internal and external raised floor and decking applications.

Features & Benefits: JCW Acoustic Batten Levelling Cradles - Box of 250

  • Excellent acoustic isolation to reduce impact and airborne sound up to 28dB
  • Supports timber battens up to 47mm wide with precise height adjustment
  • Combines with other JCW acoustic products for a complete soundproofing system

Standards & Certification

  • Fully compliant with Scottish Section 5 and England and Wales Approved Document E

Please note:

  • To achieve the most efficient support, these cradles should be spaced at 400mm batten centres, with each cradle accepting four batten ends. For higher weight loads, such as kitchen appliances, it is recommended to space the batten centres at 300mm and use cross battens.

Please Note:

This item is non-returnable due to being Special Order, Made to Measure or for hygiene reasons. Your statutory rights are not affected.

Details

Application
Floors
Material
Polypropylene
