DISCON - Insulation Anchor Metal Nail 190mm for Insulation Boards - Pack of 200

Code:
AF-DOWEL-THERM DH 10/190-Z
Brand:

This item is out of stock and not available to purchase.

Supplied in a pack of 200, these insulation anchors are utilised for the mechanical fixing of thermal insulation boards onto a vertical plane. DH fixings can be inserted into a pre-drilled hole or hammered straight into the structure, and they are suitable for use with rigid i... Read More

Create a wishlist

"I ordered 25 packs of Isover Space…"

Glen

Description

Supplied in a pack of 200, these insulation anchors are utilised for the mechanical fixing of thermal insulation boards onto a vertical plane. DH fixings can be inserted into a pre-drilled hole or hammered straight into the structure, and they are suitable for use with rigid insulation boards, Protecto-drain, and sheet materials.

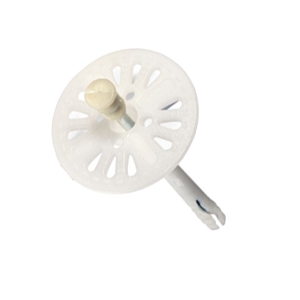

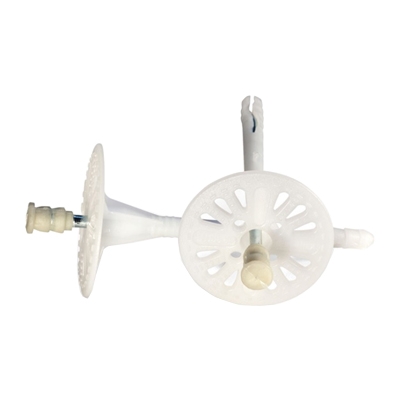

These anchors consist of a polyamide sleeve or sheath alongside an integrated circular flange/washer positioned at the top, as well as a separate metal pin that is inserted into the sleeve to penetrate the structure.

Features & Benefits: DISCON - Insulation Anchor Metal Nail 190mm for Insulation Boards - Pack of 200

  • Supplied in a pack of 200
  • For the mechanically fixing thermal insulation boards onto a vertical plane
  • Thermomaster DH - polyamide sleeve and metal nail with cap
  • DH fixings can be inserted into a pre-drilled hole or hammered straight into the structure
  • Suitable for use with rigid insulation boards, Protecto-drain, and sheet materials
  • 8mm sleeve diameter
  • Coverage of 8-12 pieces per m²

Dimensions

Length
190mm

Details

Diameter
8mm
Pack Size
Pack of 200
