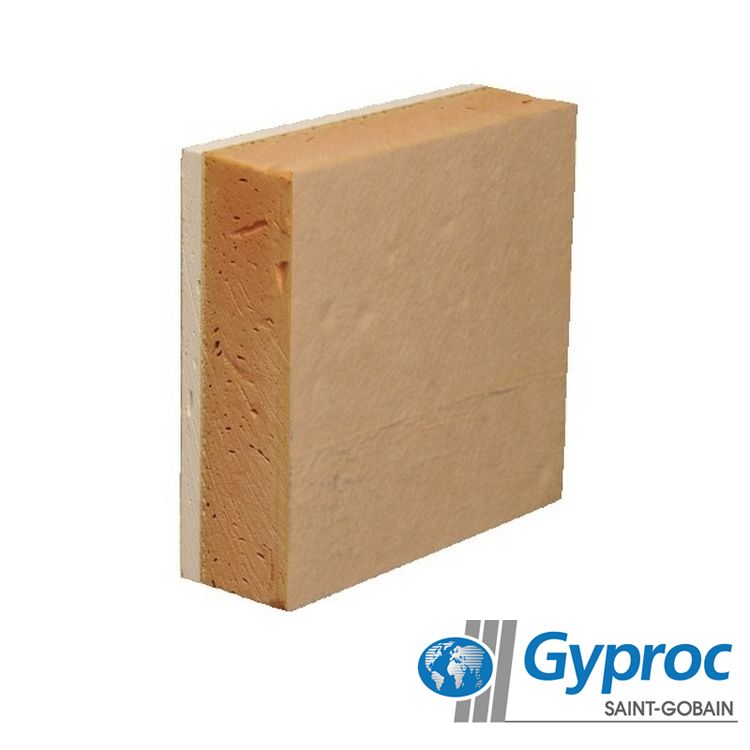

Gyproc Thermaline Super Tapered Edge Wallboard 90mm - 28.80m2 Pallet

Product Code:
392638
Brand:
Free UK Delivery
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£1,270.33 Incl. VAT
Oops! Please select from the options

Product Description

A very high performing, yet cost-effective, thermal laminate used for refurbishment and room-in-the-roof applications where a substantial upgrade in thermal insulation is required.

Gyproc Wallboard factory-bonded to CFC-free, high thermal performance phenolic foam insulant. Has good fire performance, with Class 0 rating to both faces. Also has low toxicity and smoke obscuration of less than 5%. Includes a vapour control layer as standard to reduce risk of condensation

Gyproc Thermaline Super is available in a wide range of thicknesses from 50mm - 90mm and provides
solutions for a whole variety of constructions, including the refurbishment and conversion of properties
requiring substantial thermal upgrade. All boards have an integral vapour control layer as standard, offering peace of mind for all environments.

This plasterboard is one of the products within our plasterboard range that is certified to BES 6001 achieving a rating of ‘Excellent’.

Properties

Length: 2.4m.
Width: 1.2m.
Pallet Quantity: 10 Sheets.
Pallet Coverage: 28.80m2.
Thickness: 90mm.
Weight: 6.9kg/m2.
Fire rating: class 1 both sides - BS 476 part 7.
Thermal resistance: 4.06 m²K/W.
Thermal conductivity: 0.19 W/mK.
Plus extruded polystyrene: 0.0021 W/mK.
Plasterboard facing: 9.5mm Gyproc wallboard.
Face: faced with ivory coloured Gyproc wallboard.
Backed with brown coloured phenolic foam.
Edging: tapered edge.

Application

Fixing:

Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges. Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper. Stagger horizontal and vertical board joints between layers by a minimum of 600mm. Locate boards to a the centre line of framing where this supports board edges or ends.

Plastering:

The face (ivory) of Gyproc ThermaLine super can be plastered with either Thistle BoardFinish or Thistle MultiFinish. There should be the minimum of delay between completion of the lining and the commencement of plastering.

Jointing:

Gyproc jointing materials produce durable joint reinforcement and a smooth, continuous, crack-resistant surface ready for priming and final decoration. A number of jointing specifications are available to suit the board type, method of application, and site preference.

Decoration:

After the joint treatment has dried, decoration, including any decorator’s preparatory work, should follow with the minimum delay.

Cutting:

This product may be cut using a plasterboard saw. Holes for switch or socket boxes should be cut out before the boards are fixed using a utility saw or sharp knife. When cutting boards, power and hand tools should be used with care and in accordance with the manufacturers’ recommendations. Power tools should only be used by people who have been instructed and trained to use them safely. Appropriate personal protective equipment should be used.

Dimensions

WIDTH 1200mm LENGTH 2400mm THICKNESS 90mm

Details

Facing Plasterboard Application Below Rafter
Ceiling
Internal Walls
Material Gypsum Edging Tapered Edge
