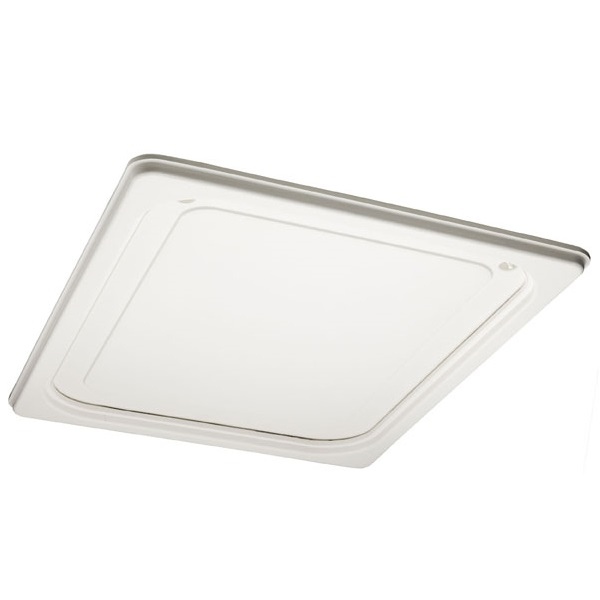

Glidevale AH4 Part L Push Up Loft Hatch - 680mm x 520mm

Code:

GVAH4PL

Brand:

This Glidevale AH4 Part L loft hatch offers an ideal solution for your loft access needs. Made with precision using injection-moulded polypropylene under BS EN ISO 9001 standards, this push-up opening complies with Building Regulations Approved Documents L and C. By satisfying...Read More

View full product details

View questions about this product

£73.09 Incl. VAT

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

David Jones

Description

With this Glidevale loft hatch, you get a comprehensive loft hatch system that seamlessly integrates with your ceiling. This thermally insulated hatch acts as a continuation of your loft or ceiling insulation, effectively minimising heat loss. Additionally, the meticulously designed seals work tirelessly to combat condensation by curbing the migration of water vapour.

Features & Benefits: Glidevale AH4 Part L Push Up Loft Hatch - 680mm x 520mm

Push-up operation
717mm x 555mm trimmed opening size
680mm x 520mm accessible clearance opening
Injection-moulded polypropylene opening
High performance
Seals to the ceiling, continuing insulation to reduce heat loss
Minimises condensation risk by limiting water vapour migration
Thermal conductivity rating of 0.35W/m²K
Suitable for domestic and commercial applications
Twin hatches and anti-wind uplift mechanism

This loft hatch is equipped with twin latches and an anti-wind uplift mechanism, ensuring protection for both the hatch itself and the valuable contents of your loft space.

Standards & Certification

Meets the demands for loft hatch requirements: Building Regulations Approved Documents L and C
Manufactured from injection-moulded polypropylene: under BS EN ISO 9001 standards

Please note:

In the case of tenanted properties, an additional option of two lockable security bolts is available to restrict access. This can be requested by calling our insulation experts.
The insulation infill within this loft hatch offers a thermal conductivity rating of 0.35W/m²K. However, if you have even stricter insulation requirements, please contact us and we can arrange to enhance the insulation and accommodate your needs.

Specification

Details

Product Type Loft Door Material Plastic Colour White Opening Type Drop In

Loft Hatch Size 52cm x 68cm

Downloads

Fitting Instructions

Questions & Answers

Question:

It looks like there are some latches missing from the frame of the AH4?

Answer:

The AH4 shares the same frame as the AH5 hinge-down trap. As such, whilst there are holes for latches to be attached, they are not required for the AH4 variant and cannot be added or purchased at a later date.

Question:

Why isn’t the door staying in place?

Answer:

When installing the AH4, the door of the hatch should be passed through the opening and dropped on top of the frame so the door is pushed into the loft space when entering.

Question:

What is the hatch made of and what colours does it come in?

Answer:

The hatch is made from injection-moulded polypropylene and comes with an anti-wind uplift catch. The hatch only come in a lightly textured scuff-resistant white finish.

Question:

What are the dimensions of the AH4?

Answer:

The frame of the hatch is 717mm x 555mm with an accessible opening of 680mm x 520mm. All models meet the NHBC minimum opening sizes. (NHBC Standards 7.2-D14)
