CircofloPro Water Underfloor Heating Kit 60m2

Name: CircofloPro Water Underfloor Heating Kit 60m2
Brand: Circoflo
SKU: CFP-KIT0060

Code:

CFP-KIT0060

Brand:

Circoflo

This item is out of stock and not available to purchase.

View alternative products

Thanks to the pipes being evenly spread out at 133mm centres, this CircofloPro water-piped underfloor heating system is less expensive to run than conventional underfloor heating systems due to the heat rising consistently throughout any room that it has been installed in. With...Read More

View full product details

View questions about this product

Create a wishlist

Stephen Reece

Description

With a straightforward installation process, this CircofloPro system provides further flexibility as the design of the smaller manifolds ensures they can be concealed away from view inside walls or cupboards. Using a lower flow temperature, it operates off the boiler to deliver energy efficiency while saving you money from energy costs. The thermostat can be fitted either in various rooms to adjust the room temperatures as necessary or in your hallway to control the entire system.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 60m2

Straightforward to install and control
Pipes laid at 133mm centres ensures 12mm pipe can be used
Small manifolds which can be concealed from sight
Variety of floor fitting types available
Safer due to lower surface temperatures
Energy efficient and cheaper to operate
Independently tested
60m² coverage
Space saving

Eliminating the requirement for radiators which take up space, this underfloor heating system has become an increasingly popular choice for heating up your home as it enables more room to keep your furniture and appliances. In combination with a variety of flooring materials, it can help create a cosy and warm environment. However, it is advised that you check your specific flooring material is compatible.

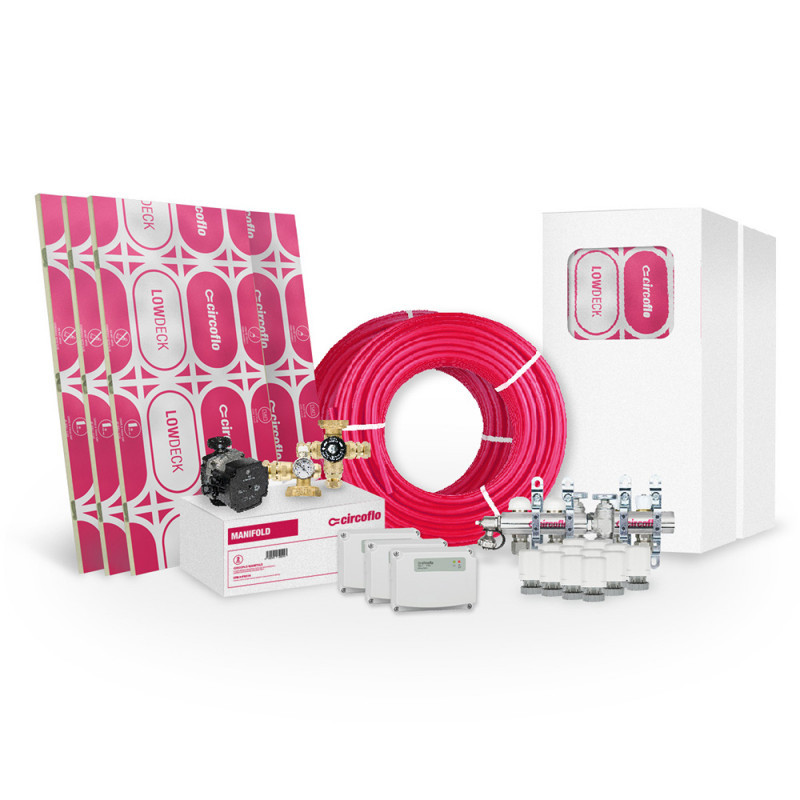

Circoflo Kit Contents

1 x mixing unit including pump
2 x 3 port manifold with pipe connectors
2 x 4 zone 230V hard-wired wiring centre
6 x 90m coil of 12mm x 1.4mm PERT UFH pipe
6 x 230V actuator valve for manifold
For retrofit tiled floors you will also get Circoflo TileDeck:
8 x Primer Pack (for up to 25m²) 5L Primer & grip and 1L Primeplus
13 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
25 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
36 x Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
For retrofit vinyl floors you will also get Circoflo TileDeck:
8 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
13 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
25 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
57 x Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex
For retrofit wooden floors you will also get:
40 x LowDeck Boards
For screed staple floors you will also get Circoflo:
3 x 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
3 x expansion foam with gaiter - 25m x 145mm x 11mm

Please note:

This Circoflo kit is supplied in panels and panel sizes are 800mm x 400mm. There is a suitable number of panels supplied to meet the m² coverage of this kit.

Specification

Details

Underfloor Fitting Type Retrofit Tiled
Retrofit Vinyl
Retrofit Wooden
Screed Staple
