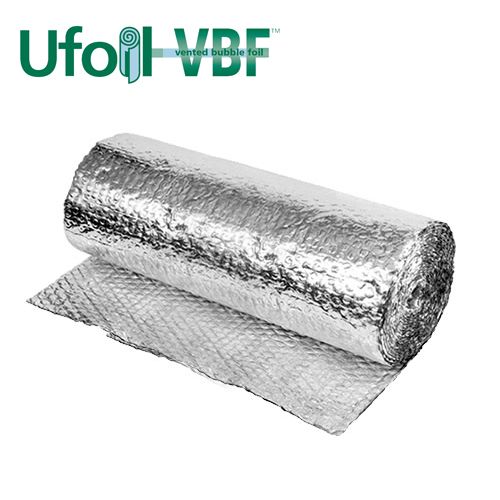

Polyethylene Double Bubble UFoil Insulation 2BDA - 1.2m x 25m x 6mm

Product Code:
10003488
Brand:
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£83.33 Incl. VAT
Oops! Please select from the options
  • 20+
    £73.34 Incl. VAT

Product Description

Ufoil double bubble double foil insulation is a range of insulation materials which are constructed using polyethylene bubble which has aluminium to either one face or two faces, for use in roof, walls and floor applications.

Ufoil insulation works on the principles of reflecting upto 95% radiant heat. Ufoil thermal performance is unaffected by moisture and condensation.

Corrosion resistant coated, low emissivity aluminium foil backed by a multi-layer air bubble film.

Please note: this Ufoil has foil to both sides with one layer of polyethylene bubble.

Properties

Length: 25m.
Width: 1.2m.
Roll size: 30m2.
Thickness: 6mm.
Thermal resistance: 1.58m2K/W - includes 25mm air gap to each face.
Double foil: foil to both sides.
Nominal weight: 263gsm.
Water vapour resistance: >150 MNs/g.
Fire rating: Class 1 to BS476.

Application
A range of cavity wall ties have been developed for use with bubble/foil insulation. This range consists of two designs with special ends to pierce the insulation material. Plastic retaining clips are also supplied to hold the insulation in place after fixing.

Wall ties enable the insulation to be installed flush to the blockwork. Ties position the insulation 25mm away from the face of the block. A range of ties are available in three different lengths to suit cavities from 60mm to 100mm.

All ties have a safety feature to the ends to reduce the risk of injury during handling and installation. They are manufactured from stainless steel and are corrosion resistant and feature multiple drips to ensure at least one drip is located in the cavity.

Taping & jointing
Horizontal joints are weather lapped but all vertical joints are to be lapped and taped with aluminium adhesive tape.

Additional uses
Ufoil insulation can also be used in many other applications i.e. roofs and floors to boost overall thermal performance.

Product Documents

Dimensions

WIDTH 1200mm LENGTH 25m THICKNESS 8mm

Details

Material Double Bubble Coverage 30m2 Product Type Roll Application Below Rafter
Ceiling
Floors
Fire Performance Class 1
