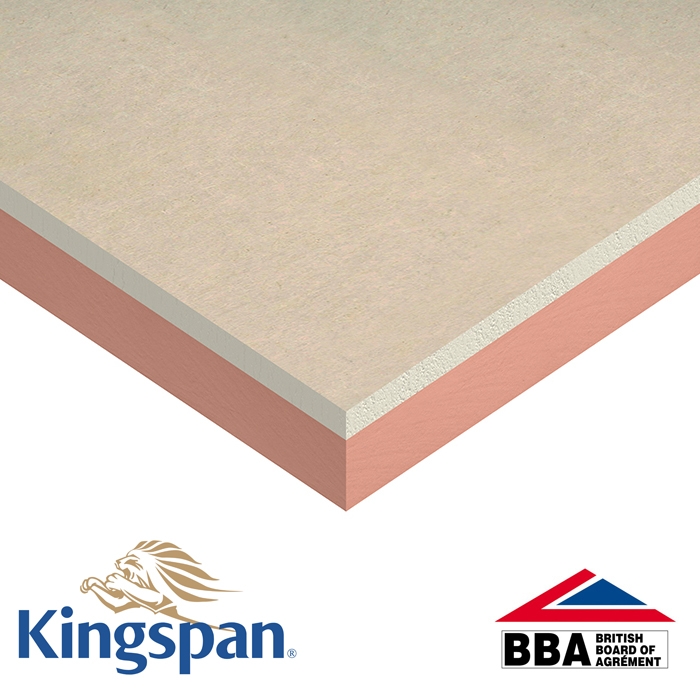

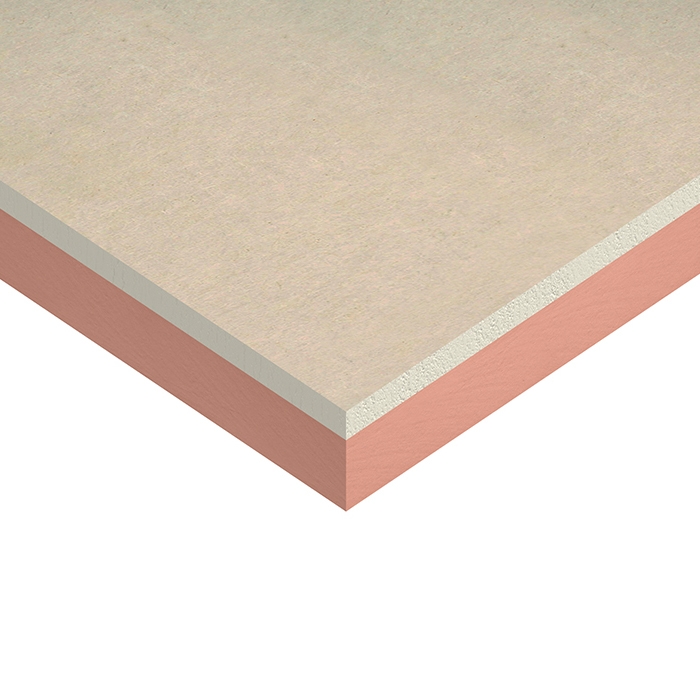

Insulated Plasterboard by Kingspan K18 Kooltherm 37.5mm - 60.48m2 Pack

Name: Insulated Plasterboard by Kingspan K18 Kooltherm 37.5mm - 60.48m2 Pack
Brand: Kingspan Kooltherm
SKU: 204991/60.48PACK
Availability: Discontinued

Code:

204991/60.48PACK

Brand:

Kingspan Kooltherm

This item is out of stock and not available to purchase.

View alternative products

Kingspan Kooltherm K18 Insulated Plasterboard is a premium performance insulation, with a fibre-free rigid thermoset phenolic insulation core with 12.5mm plasterboard for mechanically fixed dry-lining. Can be used on solid external walls, under rafters and internal to timber f...Read More

View full product details

View questions about this product

Create a wishlist

philip m

Description

Please note: the K18 range has a composite foil reverse facing.

Properties

Length: 2.4m.
Width: 1.2m.
Thickness: 25mm.
Plywood: 12.5mm.
Overall thickness: 37.5mm.
Board coverage: 2.88m2.
Pack quantity: 21x boards.
Pack coverage: 60.48m2.

Thermal conductivity

0.023 W/m.K (15-24 mm).
0.021 W/m.K (25-44 mm).
0.020 W/m.K (above 45 mm).
0.19 W/m.K (plasterboard component).

Features

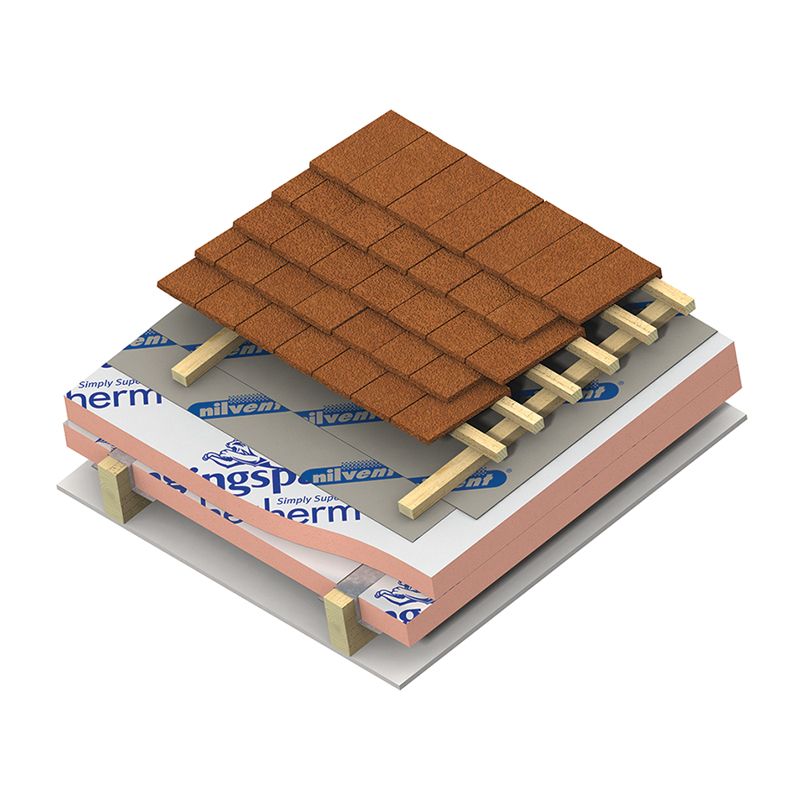

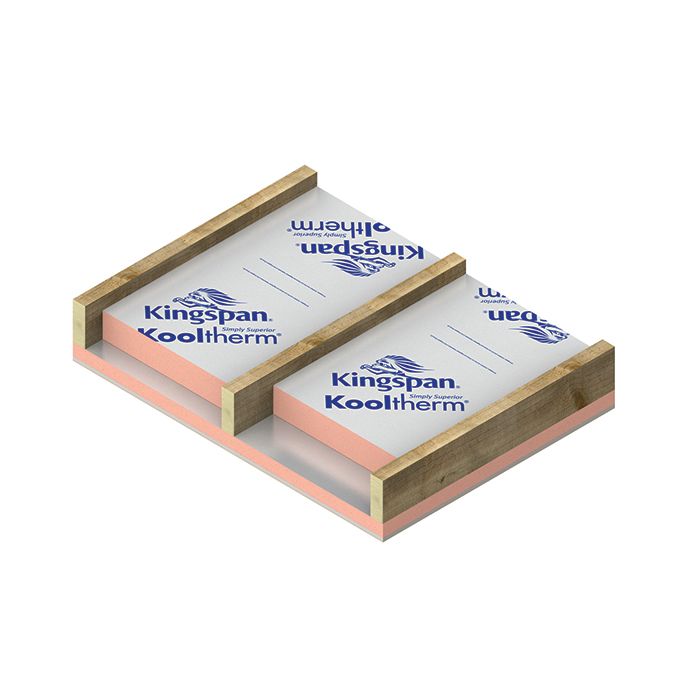

Insulation for use on solid external walls, under rafters and internal to timber frames.
Insulation should be fixed with drywall screws.

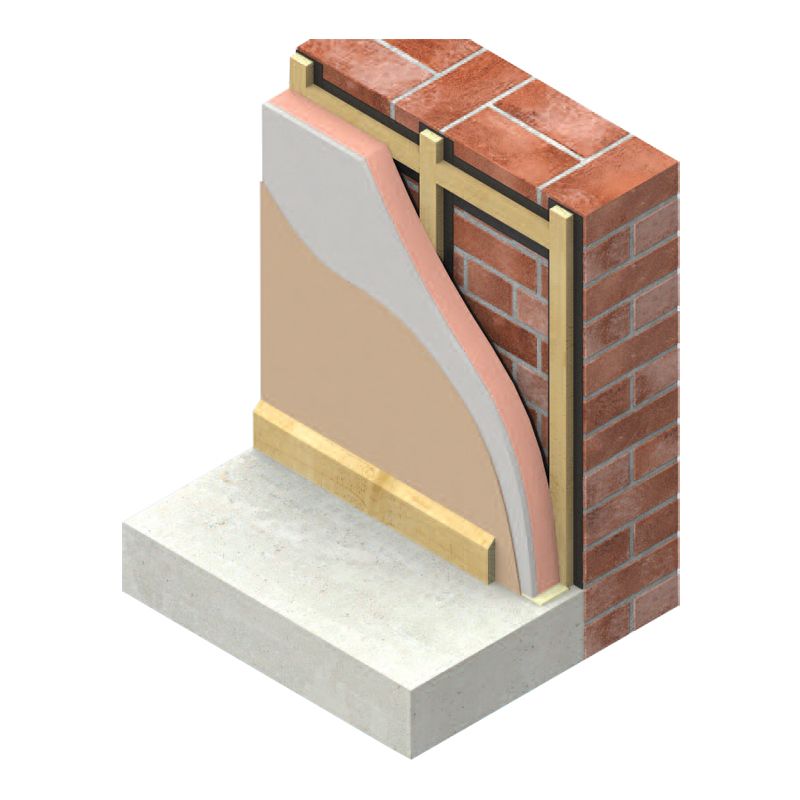

Can be fixed to either timber battens or metal studs in solid wall applications, which should be at a maximum 600mm centres.
Noggins should be used to support any board edges in wall and roof applications.
If there are concerns with damp in walls strips of DPC should be fixed behind battens.
25mm penetration for fixings should be achieved.
Fixings should be located no less than 10mm from board edges.

Core

The core of Kingspan Kooltherm K18 Insulated Plasterboard is a premium performance rigid thermoset modified resin insulant manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).

Standards & approvals

Kingspan Kooltherm K18 Insulated Plasterboard is manufactured to the highest standards under a management system certified to BS / I.S. EN ISO 9001: 2008 (Quality management systems. Requirements), BS / I.S. EN ISO 14001: 2004 (Environmental Management Systems. Requirements) and BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements).

The use of Kingspan Kooltherm K18 Insulated Plasterboard produced at Kingspan Insulation’s Castleblayney manufacturing facility is covered by NSAI Agrément Certificate 09/0329.

Please Note:

This item is non-returnable due to being Special Order, Made to Measure or for hygiene reasons. Your statutory rights are not affected.

Specification

Dimensions

Length 2400mm Width 1200mm

Details

Thickness 37.5mm Edging Tapered Edge Facing Plasterboard Application Internal Walls

Material Phenolic Foam
