Kingspan Kooltherm K12 Framing Board is a premium performance insulation, with a fibre-free rigid thermoset phenolic insulation core faced on both sides with a low emissivity composite foil facing which is used in timber or steel frame walls. Properties Length: 2.4m. Width: 1... Read More

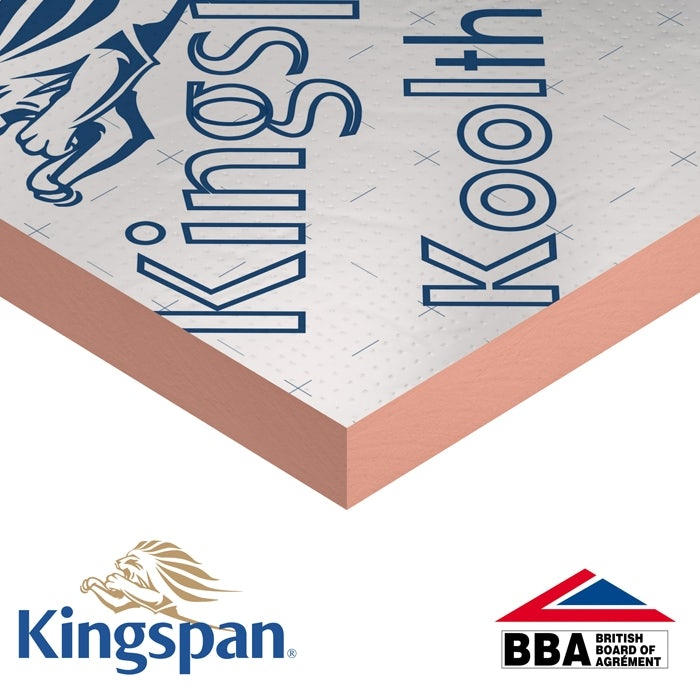

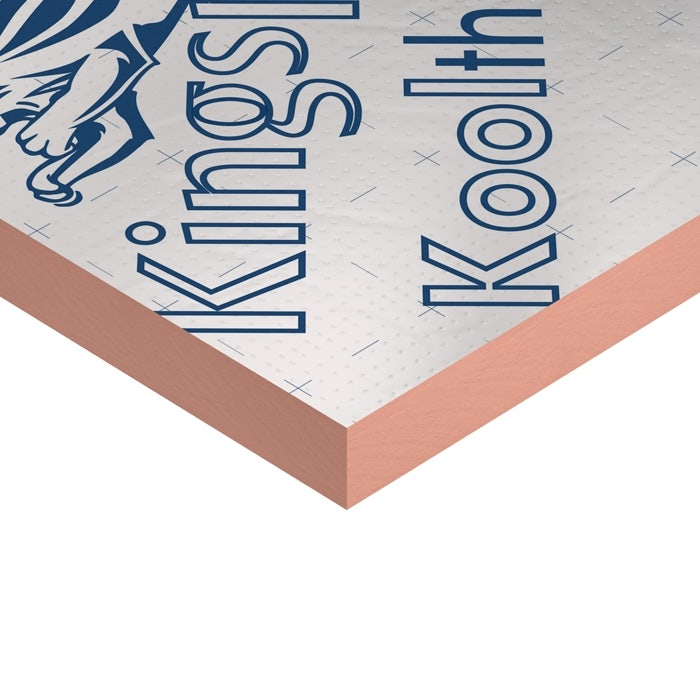

Kingspan Kooltherm K12 Framing Board is a premium performance insulation, with a fibre-free rigid thermoset phenolic insulation core faced on both sides with a low emissivity composite foil facing which is used in timber or steel frame walls.
Length: 2.4m.
Width: 1.2m.
Thickness: 110mm.
Pack quantity: 3x boards.
Pack coverage: 8.64m2.
Thermal conductivity:
15mm to 24mm - 0.023 W/mK.
25mm to 44mm - 0.021 W/mK.
45mm and above - 0.020 W/mK.
Thermal resistance: 5.50 m²K/W.
Facings: composite foil.
Compressive strength: 100kPa at 10%Â compression.
Euroclass: F.
Please note, this is not a stocked item and may be subject to minimum order quantities.
0.023 W/m.K (15-24mm).
0.021 W/m.K (25-44 mm).
0.020 W/m.K (above 45 mm).

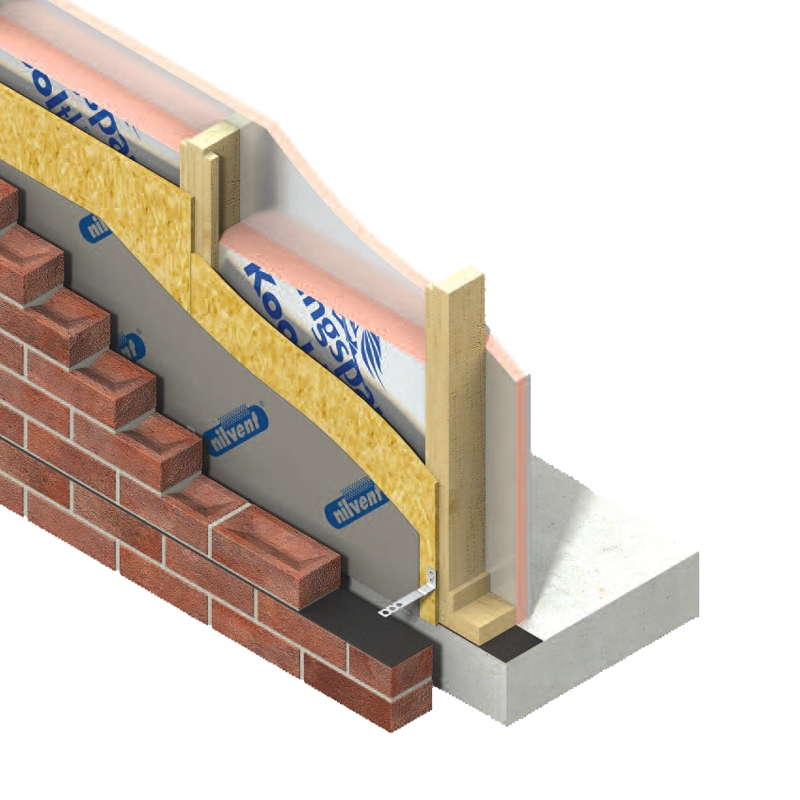

Kingspan Kooltherm K12 Framing Board is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture. This reflective, low emissivity surface improves the thermal resistance of any unventilated cavity adjacent to the board.
This item is non-returnable due to being Special Order, Made to Measure or for hygiene reasons. Your statutory rights are not affected.
