Acoustic soundboard Supreme is an enhanced performance MDF based acoustic overlay board for timber floors. A moisture resistant 9mm TG4 MDF board with a pre-bonded 15mm high performance resilient layer means the acoustic soundboard offers excellent performance with brilliant re...Read More

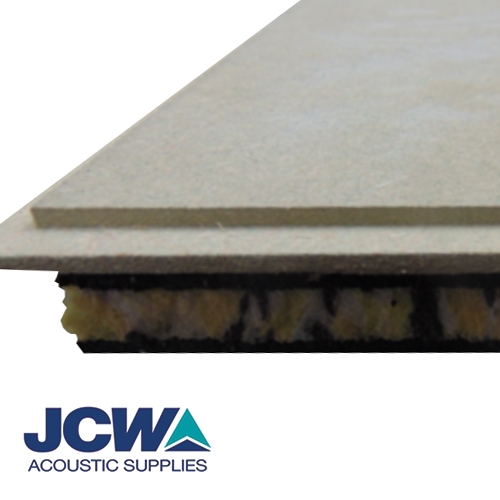

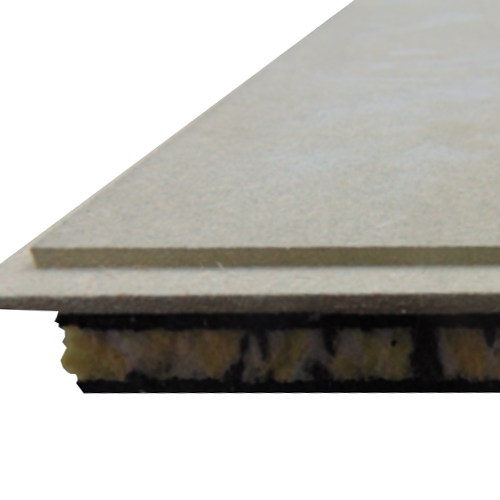

Acoustic soundboard Supreme is an enhanced performance MDF based acoustic overlay board for timber floors.
A moisture resistant 9mm TG4 MDF board with a pre-bonded 15mm high performance resilient layer means the acoustic soundboard offers excellent performance with brilliant results in airborne and impact sound reduction.
The acoustic shallow overlay board dramatically reduces sound transmission through timber floors.
This is one of the quickest and most effective acoustic solutions on the market. Only 24mm thickness this acoustic soundboard minimises construction height whilst still complying with statutory regulations.
Properties
Length : 1.2m.
Width : 600mm.
Thickness : 24mm.
Sheet size : 0.72m2.
Weight : 9kg per sheet.
Pallet quantity : 80x sheets.
Pallet coverage : 57.6m2.
Features
• Ideal acoustic overlay board for existing timber floors
• Exceptional impact sound performance
• Will also effectively improve airborne sound insulation
• Complies with Part E of the Building Regulations
• The MDF based top surface is immediately ready for final floor installation
• Must be used in conjunction with JCW Perimeter Edging Strip to ensure Building Regulations compliance

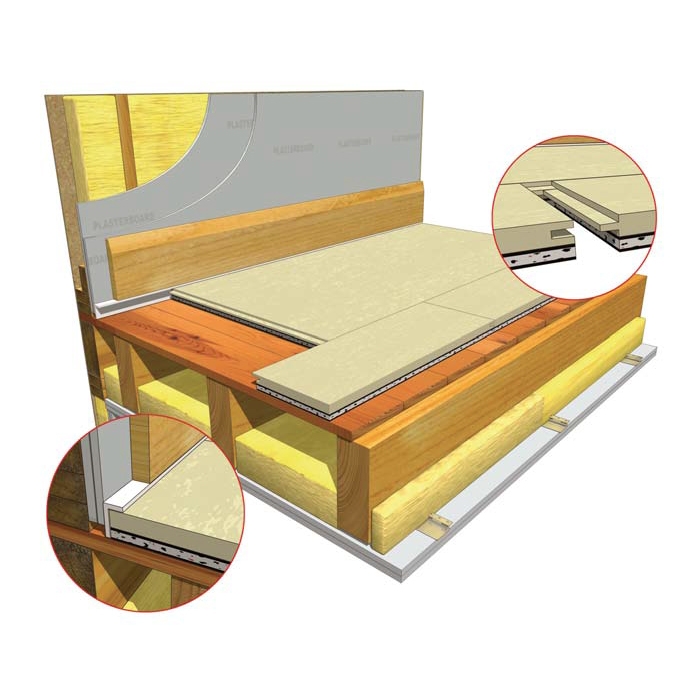

This
acoustic board overlay system is known as robust details FFT5 Resilient
overlay shallow platform floor system. Overlaying the floor with an
isolating layer and a new hard wearing surface is the most convenient
way of dramatically improving the airborne and impact sound performance
of an existing floor.
We have a range of acoustic flooring and
acoustic decking systems which range from 19mm to 38mm to suit all
budgets and floor soundproofing scenarios.
Acoustic test data
BRE LAB TEST DATA: TEST NO: L216-009, L216-010
Airborne: Rw - 63 dB Rw + Ctr - 53dB.
Impact: Ln, w - 48 dB.
