High performance impact resistant gypsum fibre board for use in the GypWall extreme system. Gives high levels of sound insulation, Class A2 and Class 0 reaction to fire performance and excellent fixing strength. Offering superior mechanical strength, dimensional stability and...Read More
High performance impact resistant gypsum fibre board for use in the GypWall extreme system. Gives high levels of sound insulation, Class A2 and Class 0 reaction to fire performance and excellent fixing strength.

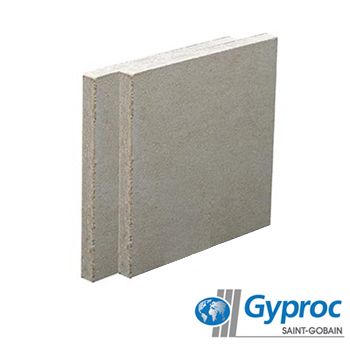

Offering superior mechanical strength, dimensional stability and environmental benefits, Rigidur H is a gypsum fibre board, manufactured from recycled paper fibre. It has been developed for high traffic applications and to meet the specialist requirements of modern methods of construction, including off-site manufacturing. The 100% recyclable board is also available in bespoke sizes for improved productivity and reduced jointing.
Rigidur H is a gypsum fibreboard which combines gypsum, cellulose fibres from recycled paper, and water, to form a dense sheet material that has superior rigidity, durability and mechanical strength.
The unique surface of Rigidur H protects the boards from scratches and damage, yet is smooth enough to decorate direct without the need for surface treatments. The tough, yet smooth, surface is a result of its special production process. By holding the boards in a continuous rolling process, they are compressed to the exact thickness required and no sanding of the surface takes place.
Length: 2.4m.
Width: 1.2m.
Thickness: 12.5mm.
Weight: 15kg/m2.
Thermal resistance: 0.04 m²K/W.
Thermal conductivity: 0.20 W/mK.
Face: beige face.
Beige reverse.
Edging: tapered edge.
Fire protection
Rigidur H achieves an A2 Euroclass reaction to fire rating. Rigidur H achieves Class 0 reaction to fire rating in accordance with Approved Document B of the national Building Regulations.
Sound insulation
The mass and sound absorbing qualities of Rigidur H enable high acoustic performance to be achieved. Performances will depend on the board type and thickness, number of layers, stud centres and type, fixing centres and choice of cavity insulation.
Rigidur H is fixed using 40mm Rigidur screws, at 300mm centres around the perimeter of the board and at the intermediate stud positions, at least 13mm from the edge of the board.
When using Rigidur H, always fix from the bottom of the partition upwards, as per best practice. Single layer Rigidur H should be fixed to Gypframe 70 S 60 ‘C’ Studs. Double layers should be fixed to Gypframe 70 AS 50 AcouStuds or Gypframe 146 AS 50 AcouStuds.
Due to the length of Rigidur screws, care must be taken when fixing in close proximity to services. Rigidur screws have a smaller head than standard British Gypsum Drywall screws, allowing them to be counter-sunk into the tough Rigidur surface. Removing the depth adapter on the screw gun may reduce burring around the edge of the screw.
Question:
How soon will it be available. Just need 4 sheets but rather urgent
Answer:
Hello, sorry but we can not supply any plasterboards at the moment.
