Kingspan Kooltherm K12 Phenolic Insulation Framing Board 2400 X 1200 X 50mm - Pack of 6 Sheets

Code:
IK12S050
Free UK Delivery

This item is out of stock and not available to purchase.

Kingspan Kooltherm K12 50mm Framing Board is a premium performance insulation, with a fibre-free rigid thermoset phenolic insulation core faced on both sides with a low emissivity composite foil facing which is used in timber or steel frame walls. Kingspan K12's thermal ...Read More

Create a wishlist

"Great product at reasonable price."

Gary S

Description

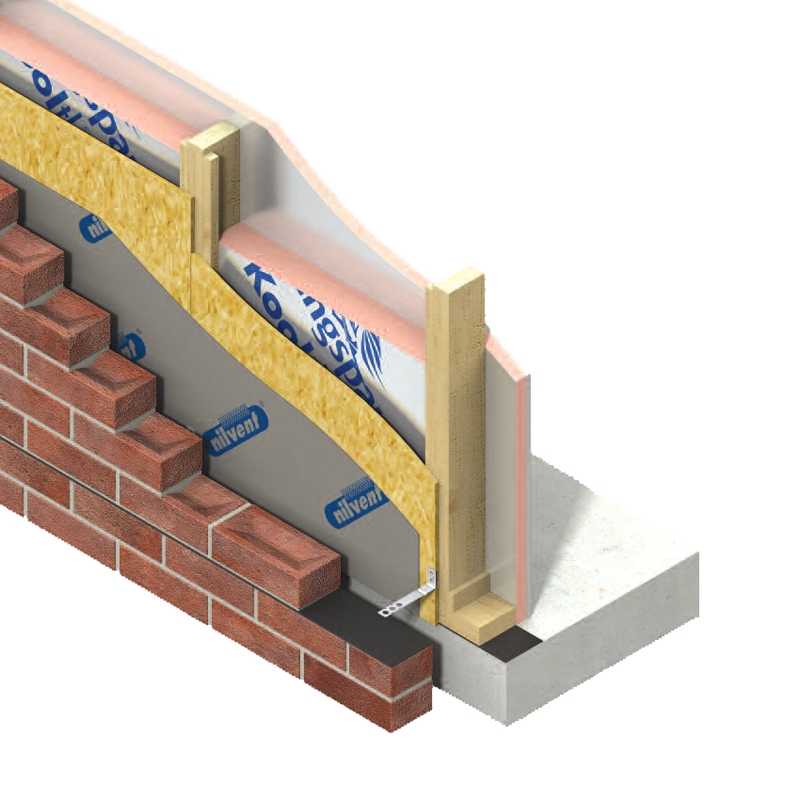

Kingspan Kooltherm K12 50mm Framing Board is a premium performance insulation, with a fibre-free rigid thermoset phenolic insulation core faced on both sides with a low emissivity composite foil facing which is used in timber or steel frame walls.

Kingspan K12's thermal conductivities are as low as 0.020 W/m.K.

Features & Benefits

  • Can be used between studs or as an insulating sheathing
  • Suitable for use with timber frame and steel frame wall construction
  • Unaffected by air infiltration
  • Resistant to the passage of water vapour
  • Easy to handle
  • Easy to install
  • Ideal for new build or refurbishment
  • Non-deleterious material
  • Manufactured with a blowing agent that has zero ODP and low GWP

Product Specification

Thickness: 50mm

Length: 2400mm

Width: 1200mm

Board Coverage: 2.88m2

Pack Quantity: 6

Pack Coverage: 17.28m2

Thermal conductivity (as low as): 0.021 W/mK

Facings: composite foil

Compressive strength: 100kPa at 10% compression

Please Note:

This item is non-returnable due to being Special Order, Made to Measure or for hygiene reasons. Your statutory rights are not affected.

Dimensions

Length 2400mm Width 1200mm

Details

Thickness 50mm Thermal Conductivity 0.021 W/mK Edging Square Edge Facing Foil
Product Type Board Material Phenolic Foam

Downloads

There are no product downloads to show.

Questions & Answers

Question:

I'm looking for a solution to insulating a mobile workshop in the back of a Luton Van. I need to know what is the maximum unsupported span of this (or other) material? The van roof is curved GRP. The simplest option would be to support panels from either side, sitting on top of the wall insulation panels - giving a 2m unsupported span in the middle. If it's not possible, the insulation could be up to 100mm thick - or worst case have Aluminium T beams spanning but it would be simpler if it supported it's own weight.

Answer:

Please see the following link:https://www.insulationsuperstore.co.uk/pages/insulating-a-van.html
