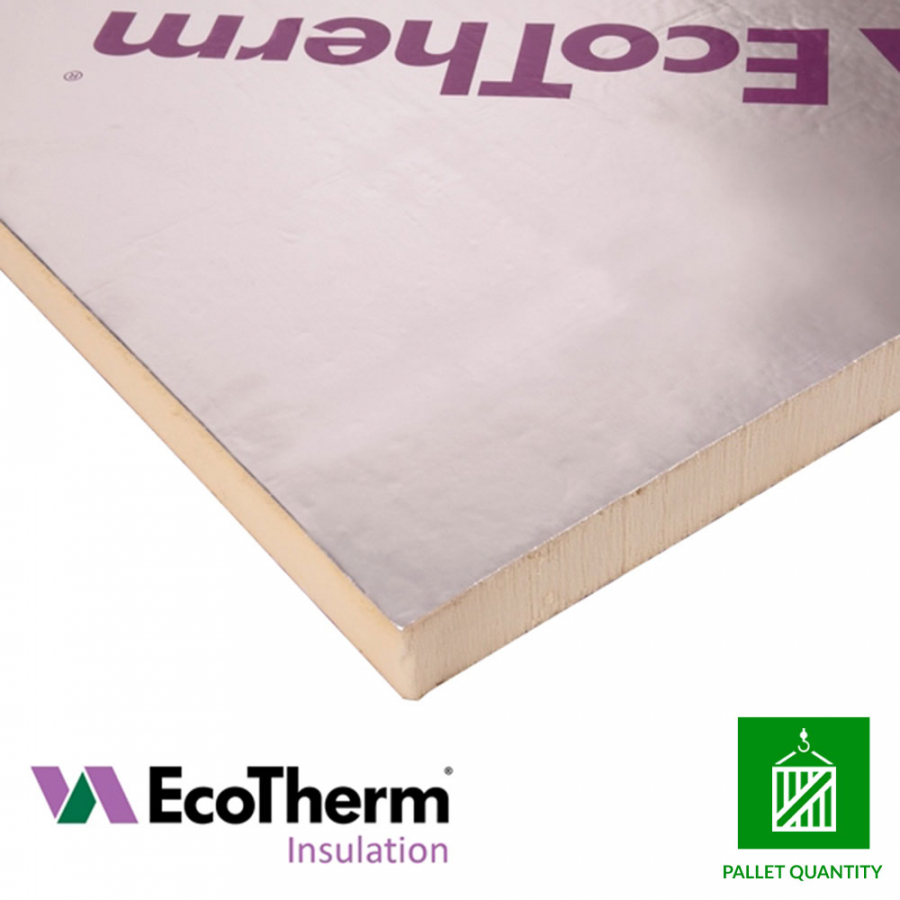

EcoTherm Eco-Versal 140mm Rigid PIR Insulation Board - 51.84m2 Pallet

Code:
100000012911
Brand:
Free UK Delivery

EcoTherm Eco-Versal comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with an aluminium foil composite on both sides. Eco-Versal has an integral vapour control layer to minimise the risk of interstitial condensation. The foil facings have a high water ...Read More

Create a wishlist

"Fantastic service"

Duncan

Description

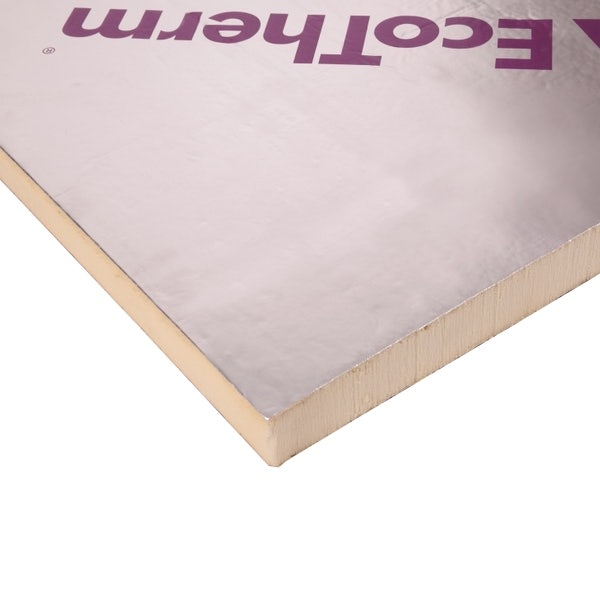

EcoTherm Eco-Versal comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with an aluminium foil composite on both sides.

Eco-Versal has an integral vapour control layer to minimise the risk of interstitial condensation. The foil facings have a high water vapour resistance and will, therefore, provide a significant resistance to water vapour transmission.

Specifications

Width: 1200mm
Length: 2400mm
Thickness: 140mm
Board Coverage: 2.88m2
Pallet Coverage: 51.84m2
Boards per Pallet: 18
Thermal Resistance/R-value: 6.364 m2K/W
Thermal conductivity (λ-value): 0.022W/mK
Weight per board: 13.65kg

Application

Applications include both new build and upgrading the thermal performance of existing building elements, providing a cost effective means of reducing CO2 emissions and for compliance with Building Regulations/Standards. Ideal for use in:

  • Floors

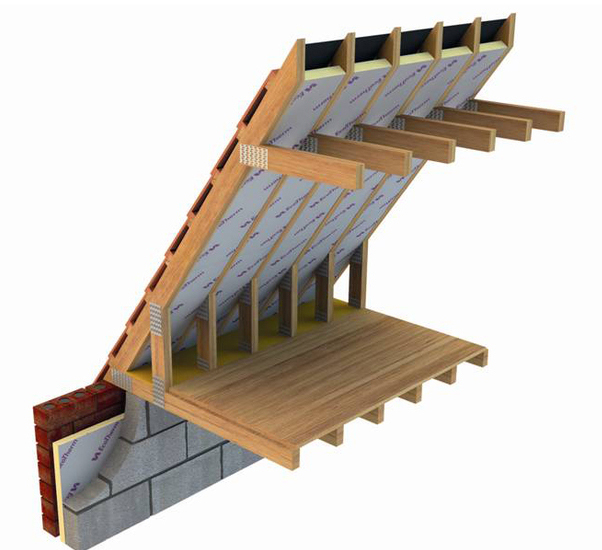

  • Pitched roofs
  • Cold flat roofs
  • Timber frame walls
  • Solid walls
  • Dormer cheek
  • Ceilings
  • Room-in-the-roof applications

Dimensions

Length 2400mm Depth 140mm Width 1200mm

Details

Thickness 140mm Thermal Conductivity 0.022 W/mK Edging Square Edge Facing Foil
Product Type Board Material PIR
