EcoTherm Eco-Cavity 50mm Rigid PIR Partial Fill Wall Insulation Board - 108m2 Pallet

Code:
100000012567
Brand:
Free UK Delivery

EcoTherm Eco-Cavity comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides.  The boards are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropriate ...Read More

Create a wishlist

"Excellent service"

Michael Collins.

Description

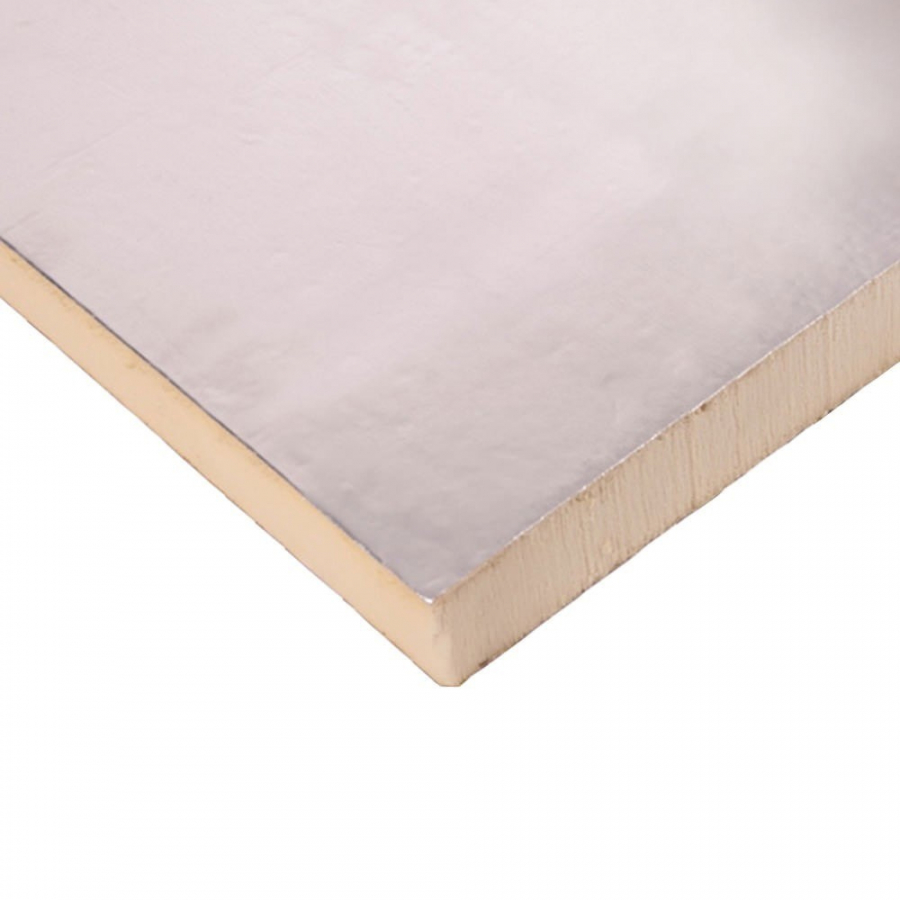

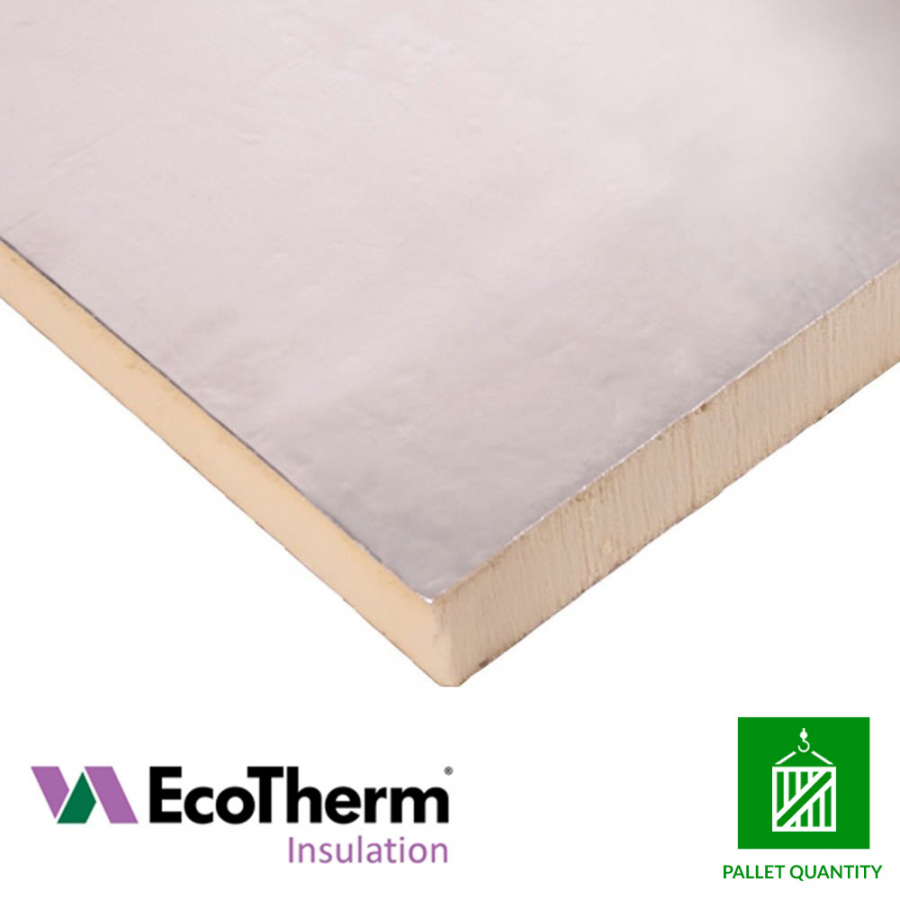

EcoTherm Eco-Cavity comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides.  The boards are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropriate spacing.

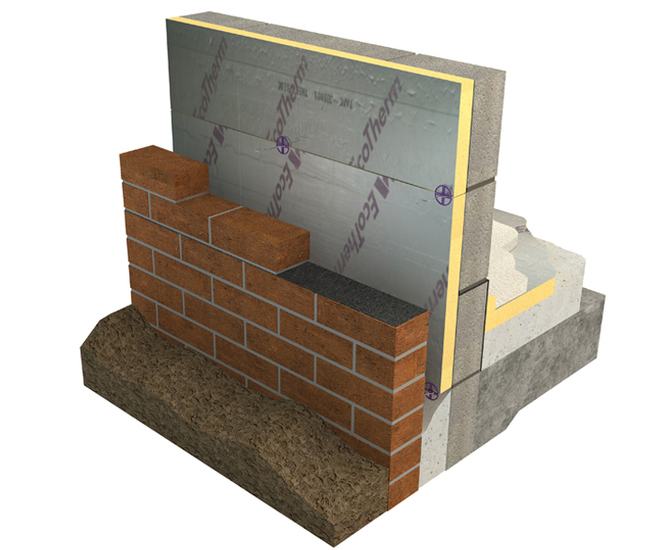

Eco-Cavity insulation boards are suitable for partial fill cavity wall insulation. They achieve high levels of thermal performance for thinner constructions whilst maintaining a clear residual air gap and offers effective protection against driving rain, particularly in coastal and exposed locations.

Suitable for use in new build walls, Eco-Cavity provides a cost effective means of reducing CO2 emissions and compliance with Building Regulations/Standards.

When the product is used in situations where it bridges the dpc in walls, dampness from the ground will not pass through to the inner leaf provided the cavity wall is detailed in accordance with Building Regulations/Standards.

Specifications

Width: 450mm
Length: 1200mm
Thickness: 50mm
Board Coverage: 0.54m2
Pallet Coverage: 108m2
Boards per Pallet: 200
Thermal conductivity (λ-value): 0.022W/mK
Weight per board: 1.1kg

Dimensions

Length 1200mm Depth 50mm Width 450mm

Details

Thickness 50mm Application Walls Material PIR Range Eco-Cavity
Board Size 450mm x 1200mm
