CircofloProWater Underfloor Heating Kit 80m2

Name: CircofloProWater Underfloor Heating Kit 80m2
Brand: Circoflo
SKU: CFP-KIT0080

Code:

CFP-KIT0080

Brand:

Circoflo

This item is out of stock and not available to purchase.

View alternative products

With a straightforward installation and affordability in comparison to conventional underfloor heating systems, this underfloor heating solution offered by CircofloPro boasts evenly spaced pipes, measuring 133mm centres. This ensures the distribution of heat is consistent and ...Read More

View full product details

View questions about this product

Create a wishlist

Sean Davey

Description

A unique feature of the design is the smaller manifolds which offer increased versatility and flexibility for the option of being concealed within walls or cupboards. As a result, any unsightly appearances are kept hidden.

Features & Benefits: CircofloProWater Underfloor Heating Kit 80m2

Cost-effective operation
Efficient use of space
Enhanced safety with lower surface temperatures
Independently tested
Simplified control and management
Easy installation
Evenly spaced pipes at 133mm intervals, allowing for the use of 12mm pipes
Smaller manifolds for flexibility and concealed appearances

By operating from the boiler, the CircofloPro system employs a lower flow temperature, delivering an energy-efficient heating solution that translates into significant cost savings on energy bills. Additionally, the system thermostat can be conveniently placed in a hallway to regulate the entire system or in individual rooms for more precise temperature adjustments.

As the demand for comfortable living environments grows, so does the popularity of underfloor heating systems. They eliminate the need for bulky radiators, freeing up valuable space within rooms for furniture and appliances while also providing a cost-effective means of heating your home. It can be paired with a range of flooring materials such as laminate, slate and carpet. However, it is important to ensure that your chosen flooring material is compatible with the heating system.

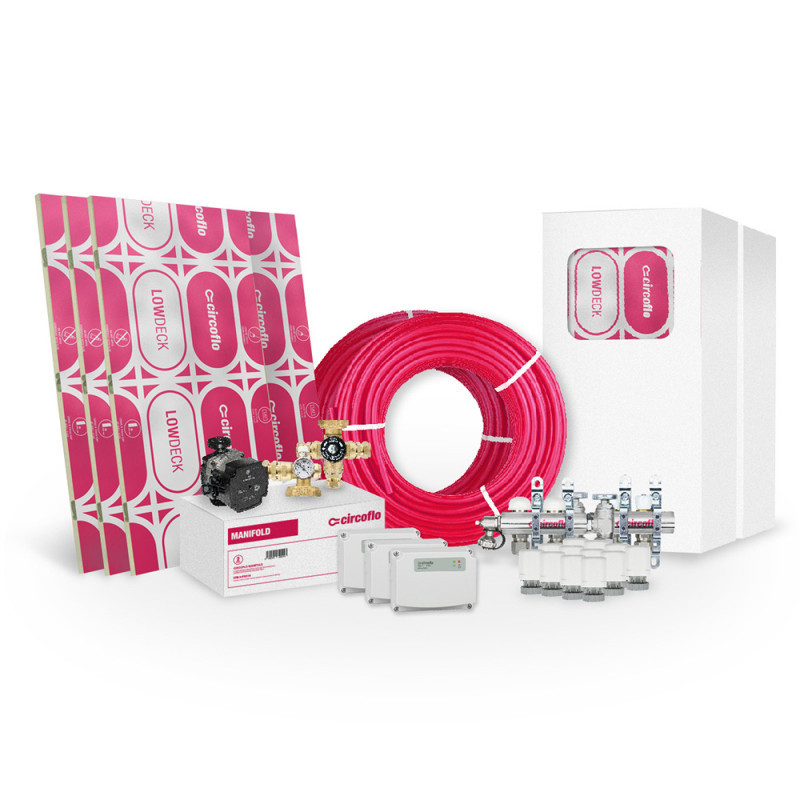

Kit Contents

8 x Circoflo 90m coil of 12mm x 1.4mm PERT UFH pipe
2 x Circoflo 4 port manifold with pipe connectors
1 x Circoflo mixing unit including pump
8 x Circoflo 230V actuator valve for manifold
2 x Circoflo 4 zone 230V hard-wired wiring centre
For screed staple floors you will also get:
4 x Circoflo 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
4 x Circoflo expansion foam with gaiter - 25m x145mm x 11mm
For retrofit wooden floors you will also get:
53 x LowDeck Boards
For retrofit tiled floors you will also get:
11 x Circoflo TileDeck Primer Pack (for up to 25m²) - 5L Prime & grip and 1L Primeplus
48 x Circoflo TileDeck Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
33 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
17 x Circoflo TileDeck Adhesive Pack (for up to 5m²) - 20kg bag Ultimate Adhesive
For retrofit vinyl floors you will also get:
11 x Circoflo TileDeck Primer Pack (for up to 25m²) - 5L Prime & grip and 1L Primeplus
33 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
76 x Circoflo TileDeck Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex
17 x Circoflo TileDeck Adhesive Pack (for up to 5m²) - 20kg bag Ultimate Adhesive

Please note:

Circoflo kits are supplied in panels and panel sizes are 800mm x 400mm. The appropriate number of panels are supplied to meet the m² coverage of the kit.

Specification

Details

Underfloor Fitting Type Retrofit Tiled
Retrofit Vinyl
Retrofit Wooden
Screed Staple
