CircofloPro Water Underfloor Heating Kit 160m2

Product Code:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£2,074.96 Incl. VAT
Oops! Please select from the options


CircofloPro is an easy to install water pipe underfloor heating system that features smaller manifolds, allowing them to be discreetly located and hidden from sight inside cupboards or walls. The ultra-flexible 12mm pipes in the CircofloPro kit are evenly spaced at 133mm centres, providing faster warm up times and permitting the heat to rise evenly throughout any room it has been installed in.

The CircofloPro underfloor heating system runs off the boiler and uses a lower flow temperature meaning it is safer, more energy efficient and cheaper to run than conventional radiator systems, saving you money on your energy bills.

Building regulations dictate independent room temperature control, therefore it is advised to install one thermostat per room with common sense applied to small WC’s off hallways etc.

Please note: This kit does NOT come with a thermostat included as standard. If you wish to purchase a CircofloPro Underfloor Heating Thermostat, please click on the link for more details.

For information on how to create your own bespoke CircofloPro quote that is fully specified to your project call our team or Insulation experts on 01752 692 206.

Circoflo kits are supplied in panels and panel sizes are 800mm x 400mm. There are the appropriate number of panels supplied to meet the m2 coverage of the kit.

Why Underfloor Heating?

Underfloor heating is becoming an increasingly popular way of warming the home. By installing underfloor heating systems, you remove the need to have radiators taking up space within the room, meaning more space is available for furniture and appliances, as well as saving money on energy bills. Underfloor heating helps create a warm and cosy environment within the home and can be used in conjunction with a wide range of different flooring materials, from carpet and slate to laminate, but we'd always recommend checking that your specific flooring material is suitable.

Features and Benefits

  • Small manifolds
  • Energy efficient
  • Easy to control
  • Independently tested
  • Safer due to lower surface temperatures

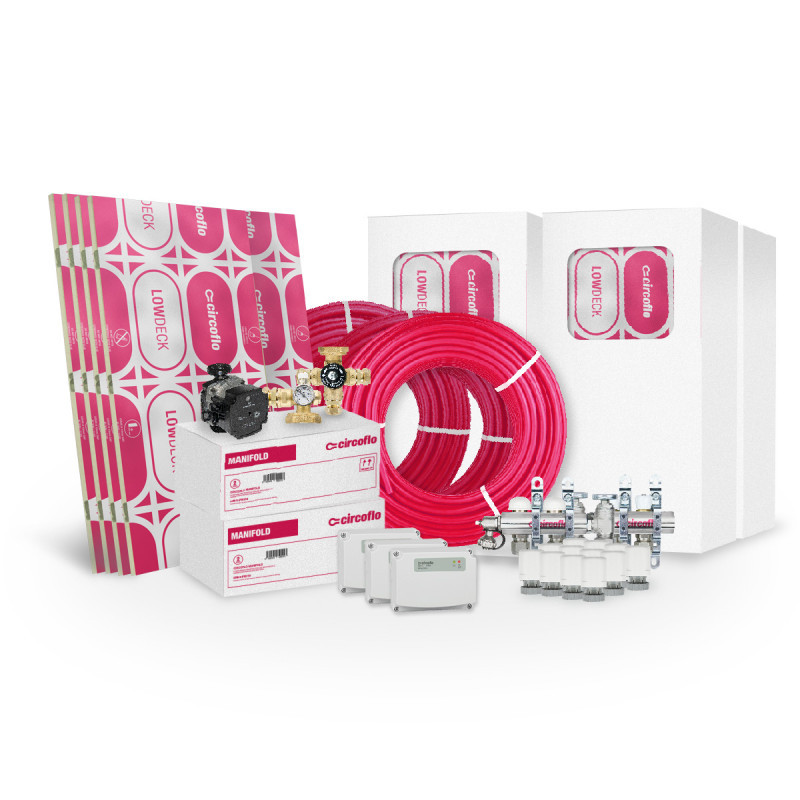

What does this kit include?

4 x Circoflo 4 port manifold with pipe connectors
1 x Circoflo mixing unit including pump
16 x Circoflo 90m coil of 12mm x 1.4mm PERT UFH pipe
16 x Circoflo 230V actuator valve for manifold
4 x Circoflo 4 zone 230V hard-wired wiring centre

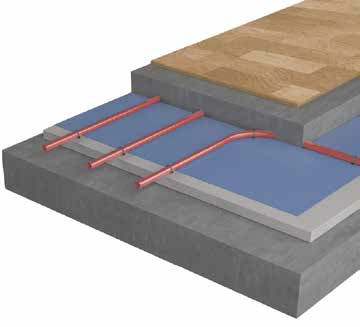

For screed staple floors you will also get:
8 x Circoflo 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
7 x Circoflo expansion foam with gaiter – 25mx145mmx11mm

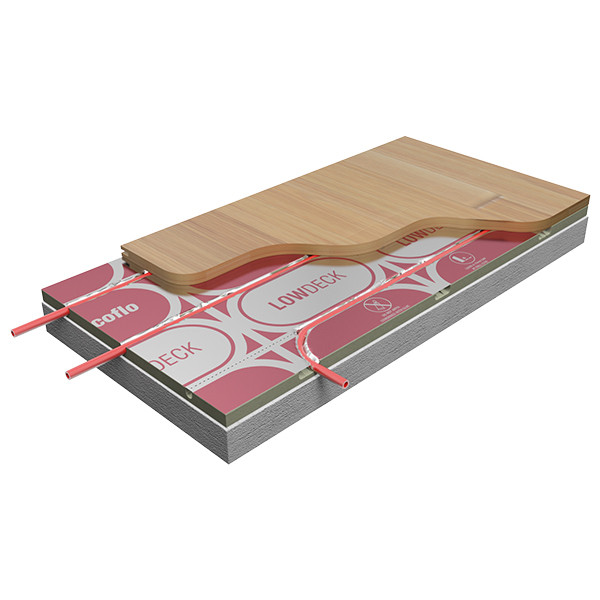

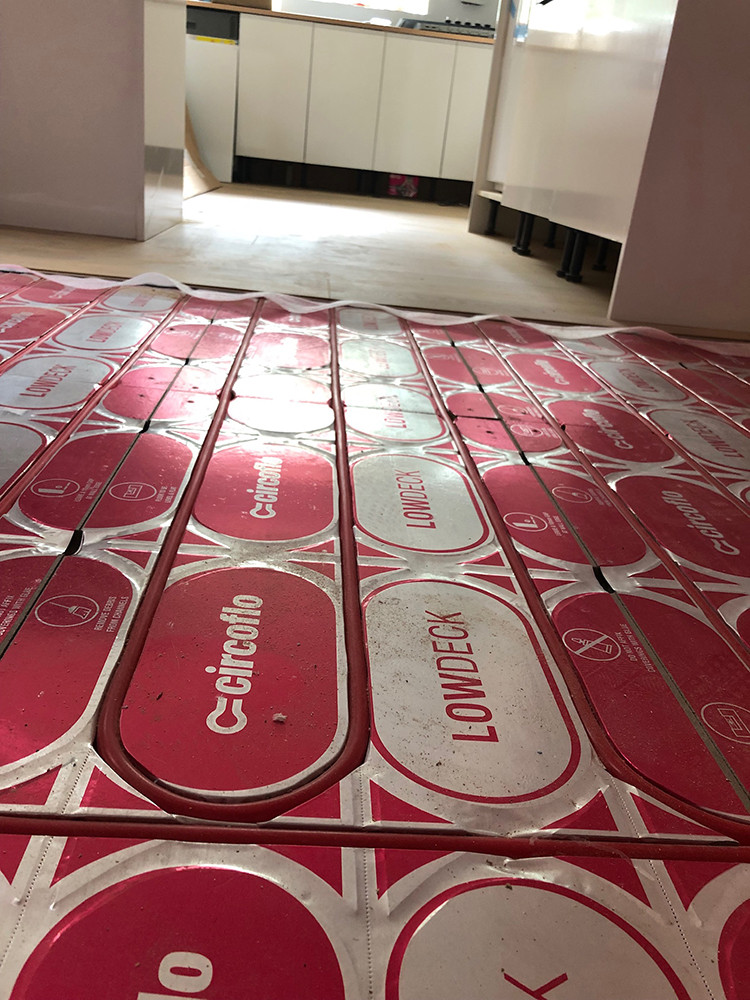

For retrofit wooden floors you will also get:
105 x LowDeck Boards

For retrofit tiled floors you will also get:
6 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl - 8no. 18mmx 800mmx400mm
22 x Circoflo TileDeck Primer Pack (for up to 25m2) - 5L Prime & grip & 1L Primeplus
34 x Circoflo TileDeck Adhesive Pack (for up to 5m2) - 20kg bag Ultimate Adhesive
96 x Circoflo TileDeck Levelling Pack (for up to 1.85m2 with tiles) 20kg bag Levelflex

For retrofit vinyl floors you will also get:
66x Circoflo TileDeck Low build up UFH panels for tiles and vinyl - 8no. 18mmx 800mmx400mm
22 x Circoflo TileDeck Primer Pack (for up to 25m2) - 5L Prime & grip & 1L Primeplus
34 x Circoflo TileDeck Adhesive Pack (for up to 5m2) - 20kg bag Ultimate Adhesive
152 x Circoflo TileDeck Levelling Pack (for up to 1.16m2 with Vinyl) 20kg bag Levelflex


Underfloor Fitting Type Retrofit Vinyl
Retrofit Wooden
Screed Staple
Retrofit Tiled
