CircofloPro Water Underfloor Heating Kit 10m2

Name: CircofloPro Water Underfloor Heating Kit 10m2
Brand: Circoflo
SKU: CFP-KIT0010

Code:

CFP-KIT0010

Brand:

Circoflo

This item is out of stock and not available to purchase.

View alternative products

This easy-to-install water pipe underfloor heating kit from CircofloPro includes smaller manifolds which ensure they can be hidden from sight and discreetly placed inside cupboards or walls. Delivering faster warm-up times, the ultra-flexible 12mm pipes are equally spaced at 1...Read More

View full product details

View questions about this product

Create a wishlist

Scott Mcmillan

Description

Using a lower flow temperature and running off your boiler, this CircofloPro underfloor heating system provides a more energy-efficient, safer and cheaper-to-run method that saves you money on your energy bills in comparison to standard radiator systems.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 10m2

10m² coverage
Safer thanks to lower surface temperatures
Space-saving
Independently tested
Variety of floor fitting types available
Easy to install and control
Cost-effective and energy-efficient
Small manifolds

Building regulations require independent room temperature control, therefore, it is recommended to install one thermostat per room with common sense applied to small WCs off hallways for example.

As an increasingly popular means for warming your home, this underfloor heating system can be installed to eradicate the necessity for radiators to take up space within your home so that there is more room available for furniture and appliances. Not only does it save you from energy costs but it also helps to create a warm and comfortable environment. It can be used in conjunction with various flooring materials such as carpet, slate and laminate, however, it is always recommended that you check that your specific flooring material is compatible.

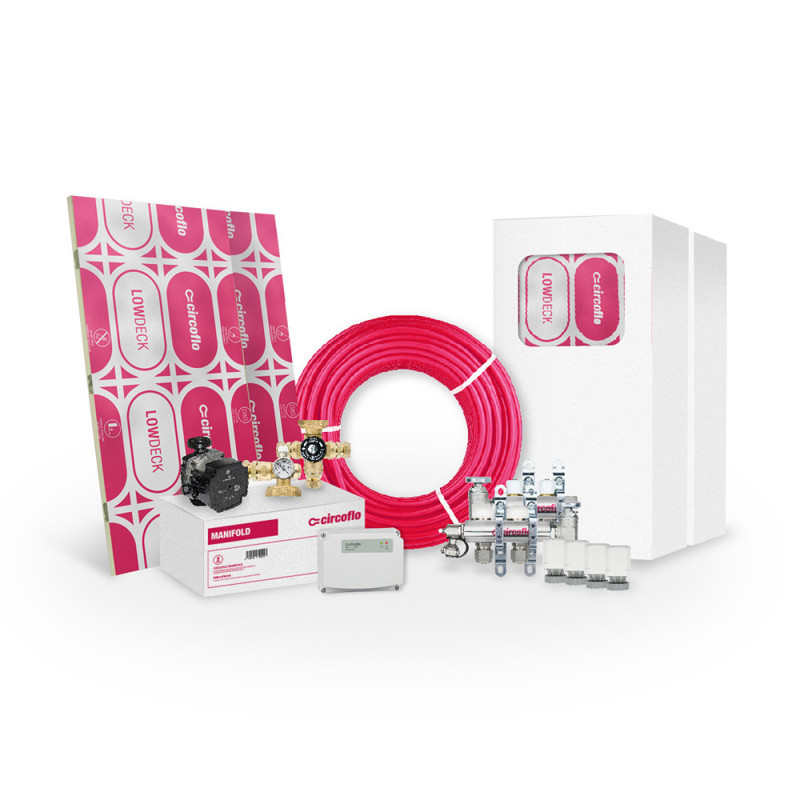

Circoflo Kit Contents

1 x mixing unit including pump
1 x 2 port manifold with pipe connectors
1 x 90m coil of 12mm x 1.4mm PERT UFH pipe
1 x manifold port blanking plug - 2 pcs
1 x 4 zone 230V hard-wired wiring centre
1 x 230V actuator value for manifold
For retrofit vinyl floors you will also get Circoflo TileDeck:
2 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
3 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
10 x Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex
5 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
For retrofit tiled floors you will also get Circoflo TileDeck:
2 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
3 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
6 x Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
5 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
For screed staple floors you will also get Circoflo:
1 x expansion foam with gaiter - 25mm x 145mm x 11mm
1 x 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
For retrofit wooden floors you will get:
7 x LowDeck Boards

Please note:

Circoflo kits are supplied in panels and panel sizes are 800mm x 400mm. There is an appropriate number of panels included to meet the m² coverage of this kit.
For information on how to create your own bespoke CircofloPro quote that is fully specified to your project, call our team of insulation experts.
This kit does NOT come with a CircofloPro Underfloor Heating Thermostat included as standard.

Specification

Details

Underfloor Fitting Type Retrofit Tiled
Retrofit Vinyl
Retrofit Wooden
Screed Staple
