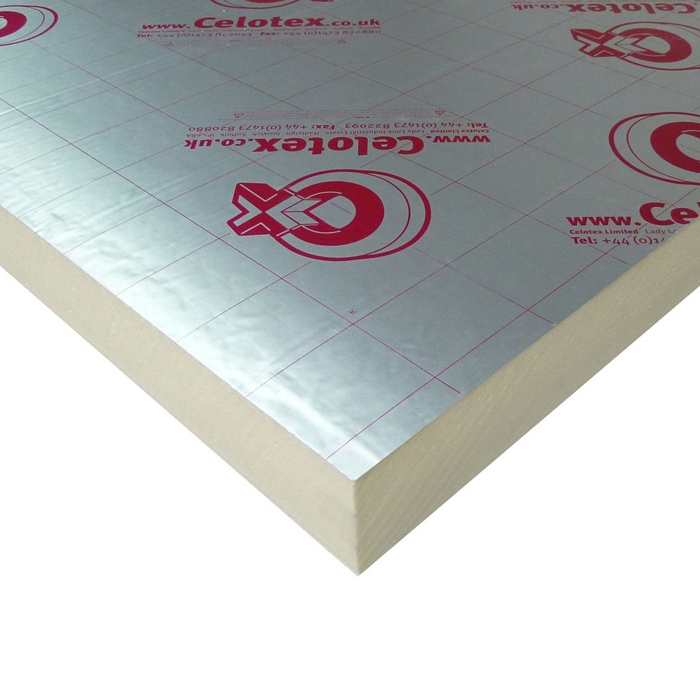

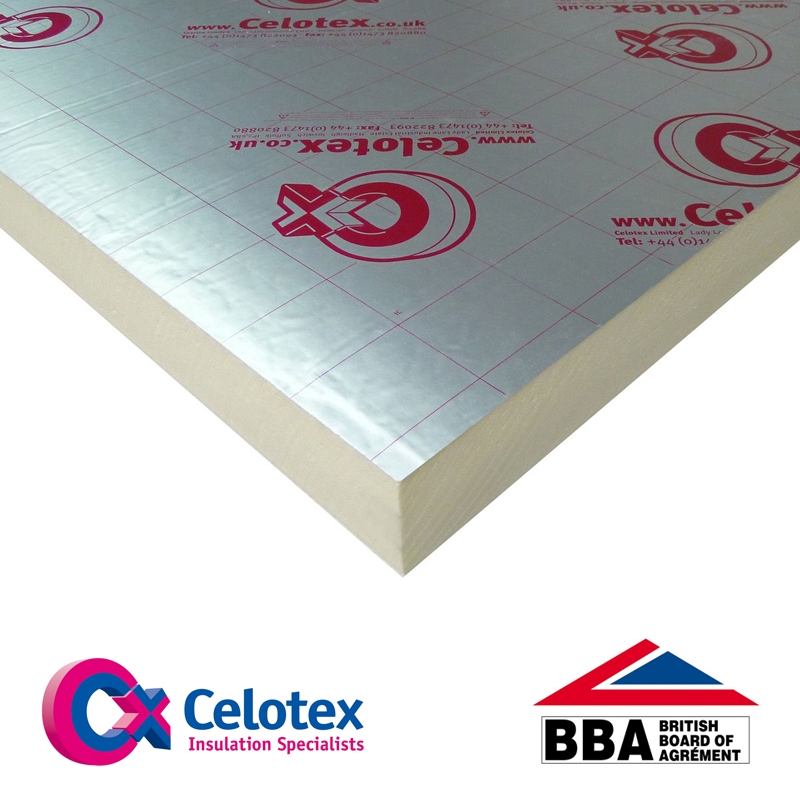

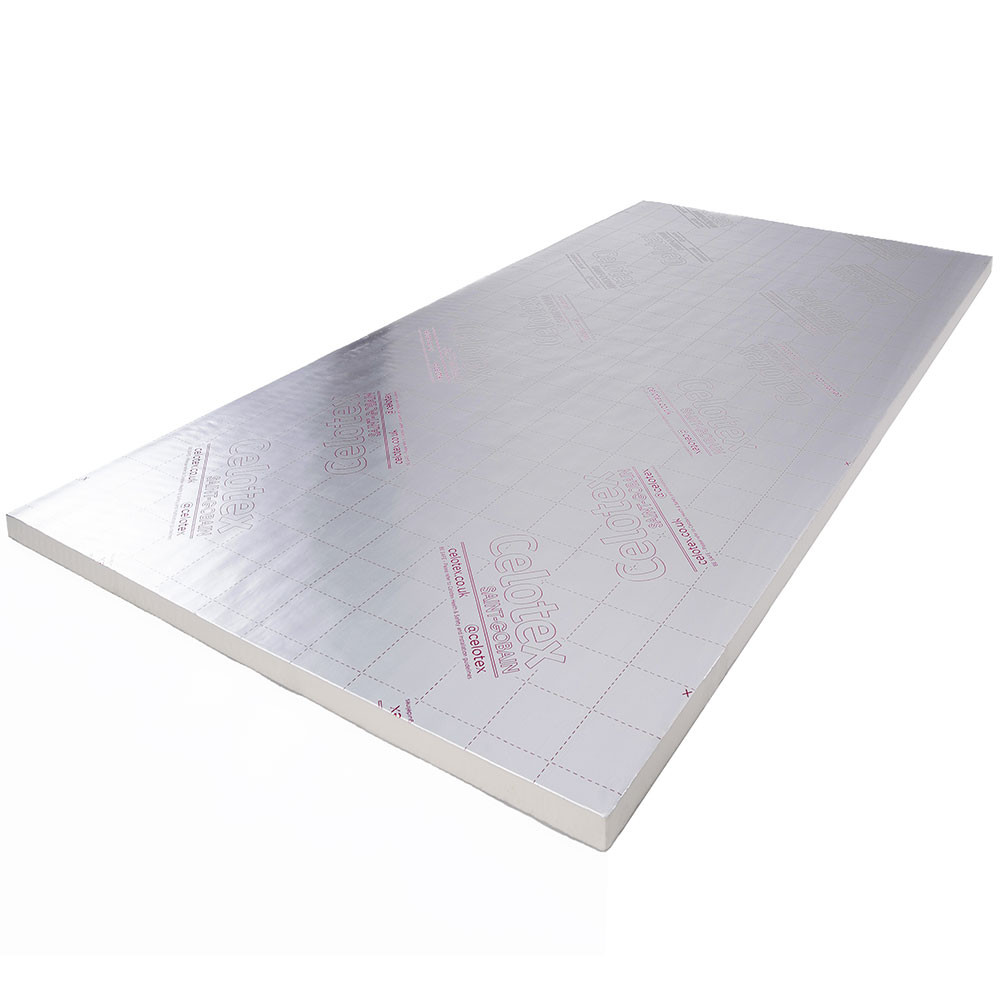

Celotex 70mm GA4070 Insulation Board - 2.4m x 1.2m

Name: Celotex 70mm GA4070 Insulation Board - 2.4m x 1.2m
Brand: Celotex
SKU: 778044
Price: 35.08 GBP
Availability: LimitedAvailability

Code:

778044

Brand:

Celotex

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

Celotex GA4000 is a multi-purpose insulation board which can be specified for use in a variety of applications such as pitched roofs, flat roofs, solid masonry walls, floors, timber framed & steel framed systems. It has long been at the heart of the Celotex product range provi...Read More

View full product details

View questions about this product

Create a wishlist

ellie

Description

With low emissivity foil facings, GA4000 is manufactured from rigid polyisocyanurate (PIR) using a blowing agent that has zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Properties

Length: 2.4m.
Width: 1.2m.
Coverage: 2.88m2.
Thickness: 70mm.
rValue: 3.15m2K/W.
Weight: 2.19kg/m2.
Thermal conductivity: 0.022 W/mk - BS EN 12667.
Compressive strength: ≥140kPa - BS EN 826.
Water vapour resistance: >150MNs/g - BS EN 12086: Method B.
Spread of flame: Class 1 - BS 476-7.

Application

The insulation shall be Celotex GA4000 comprising a polyisocyanurate rigid foam insulation core, with a thermal conductivity of 0.022W/mK and low emissivity aluminium foil facings on both sides. GA3000 is A+ rated when compared to the BRE Green Guide 2008 and is CFC/HCFC free with zero ODP and low GWP.

Celotex GA4000 can be specifed for use in a variety of applications such as pitched roofs, flat roofs, solid masonry walls, floors, timber framed & steel framed systems.

CE marking compliance to BS EN 13165:2001 and manufactured in accordance with quality management systems BS EN ISO 9001:2000 by Celotex Limited. All products must be installed in accordance with instructions issued by Celotex Limited.

GA4000 specifications

Comes in thicknesses ranging from 50 - 100mm, making it the thinnest PIR insulation available, in a standard board size of 1200mm x 2400mm.
Is suitable for use in a number of applications including roof, wall and floor systems.
Is easy to cut and shape.
Includes low emissivity foil facings giving improved thermal insulation performance within cavity air spaces.
Provides reliable long-term energy savings for buildings.

Specification

Dimensions

Length 2400mm Depth 70mm Width 1200mm

Details

Thickness 70mm Thermal Conductivity 0.022 W/mK Edging Square Edge Facing Foil

Product Type Board Material PIR
