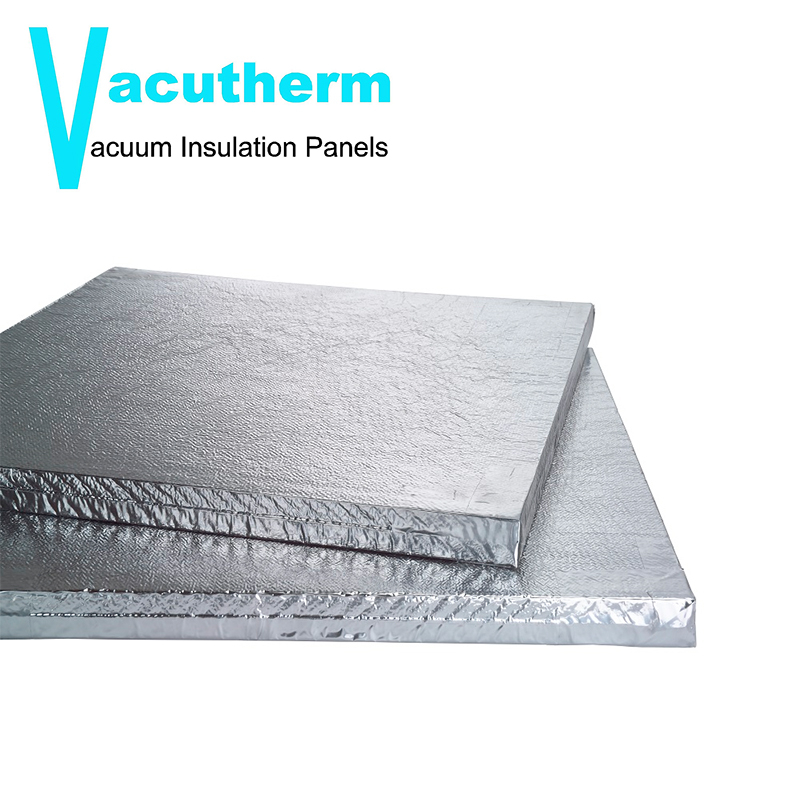

Vacutherm Vacupor NT-B2 Vacuum Insulated Panel - 1m x 600mm x 40mm

Code:
NT-BS-S-10060-40

This item is out of stock and not available to purchase.

Vacuum insulated panels are a good choice in constructions where you may not have a lot of thickness to install insulation in. Vacutherm Vacupor NT-B2 vacuum insulated panels are a fantastic example of where thin insulation can insulate very well and save space. These vacuum ...Read More

Create a wishlist

"Fast reliable service"

Paul

Description

Vacuum insulated panels are a good choice in constructions where you may not have a lot of thickness to install insulation in. Vacutherm Vacupor NT-B2 vacuum insulated panels are a fantastic example of where thin insulation can insulate very well and save space.

These vacuum insulated panels are a fantastic insulator as they have very low internal pressure, they’re low density and they’re made up a microporous material, allowing the insulation to breathe. Thermal conductivity is as low as 0.005 W/mK.

Applications of Vacutherm Vacupor NT-B2 include terrace insulation, flat roof insulation, cold storage floor insulation and façade elements.

Please note: drilling, cutting, milling, nailing or otherwise puncturing vacuum insulated panels will remove all their insulating properties.

Properties

Length : 1m.
Width : 600mm.
Thickness : 40mm.
Panel size : 0.6m2.
Thermal conductivity :
Rated value - 0.008 W/mK. (according to DIBT approval number Z-23.11-1662).
Ambient pressure - 0.0019 W/mK.
1 mbar pressure - 0.005 W/mK.
Density : 170 - 210 kg/m3.
Colour : silver - caused by film.

Applications

Balcony insulation.
Floor insulation.
Flat roof insulation.
Cold storage floor insulation.
Internal and external walls.

Dimensions

Length 1000mm Width 600mm

Details

Thickness 40mm Thermal Conductivity 0.008 W/mK Facing Foil Application External Walls
Features Vacuum Panel Product Type Board Material Vacuum Insulated Panel
