Pavatherm-Plus Woodfibre Sarking Board 140mm by Pavatex - 15.84m2

Code:
PAVP140
Brand:

This item is out of stock and not available to purchase.

Pavatherm-Plus is a permeable insulation with integrated sarking board and is either laid over the full area as the outer layer of a Pavatex over-rafter insulation, or is fitted directly on the rafters as a supplement to between-rafter insulation - for use as a sarking board, ...Read More

Create a wishlist

"That’s what you need...."

Peter G

Description

Pavatherm-Plus is a permeable insulation with integrated sarking board and is either laid over the full area as the outer layer of a Pavatex over-rafter insulation, or is fitted directly on the rafters as a supplement to between-rafter insulation - for use as a sarking board, please observe the country-specific application codes according to the regulations and standards in the technical documentation.

External wall insulation applications: In the external wall area, Pavatherm-Plus is suitable as an insulating element for insulation in both solid and timber constructions with clad walls. Proven combination of Pavatherm and Isolair.

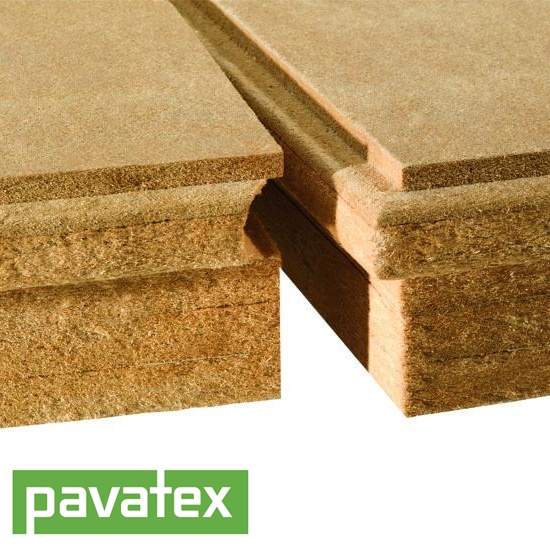

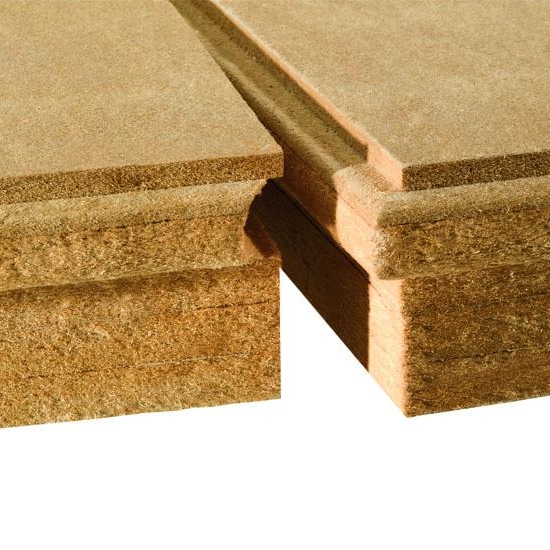

T&G woodfibre insulation sarking board which can be used for cladding or tiling.

Properties

Length: 1.78m.
Width: 560mm.
Thickness: 140mm.
Board size: 0.99m2.
Pallet quantities: 16x boards.
Pallet coverage: 15.84m2.
Weight: 26.46kg per m2.
Edge profile: tongue & groove.
Thermal conducitivty: 0.043 W/mK.
Fire rating: class E.
Compressive strength: 100kPa at 10% compression.

Application

Roofs: over rafter, insulated sarking.
Walls: on to studs or existing masonry.
Fixed: mechanical fixings.

Storage

Store dry and protected from damage.
Only install when dry.
Stack no more than 4 pallets on top of each other.

Dimensions

Length 1780mm Width 560mm

Details

Thickness 140mm Thermal Conductivity 0.043 W/mK Edging Tongue & Groove Product Type Board
Material Wood Fibre
