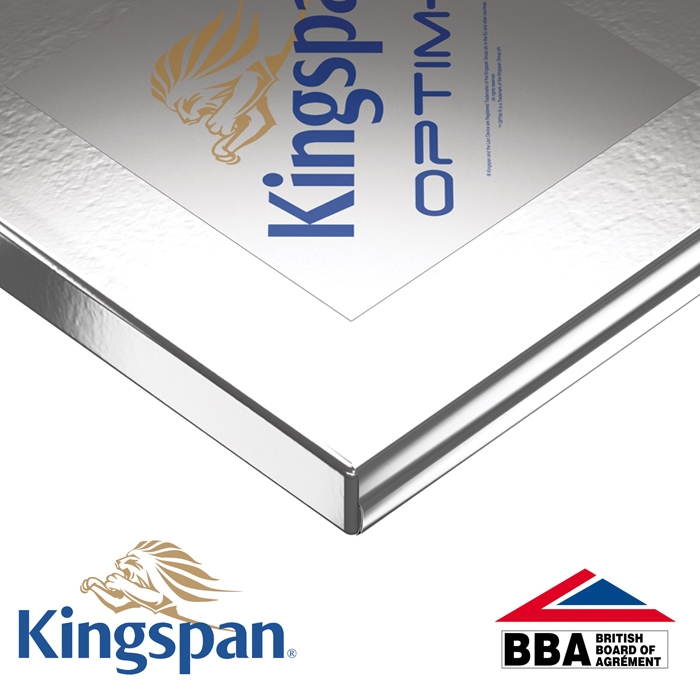

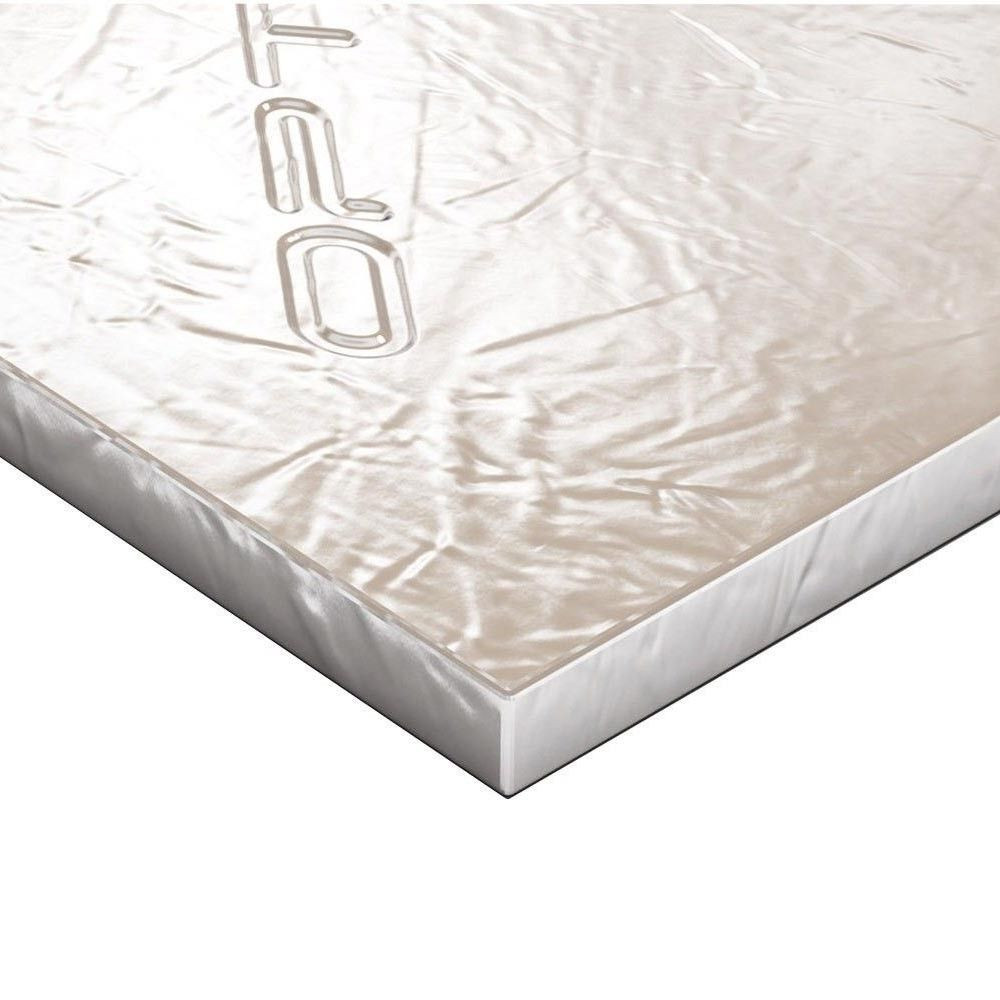

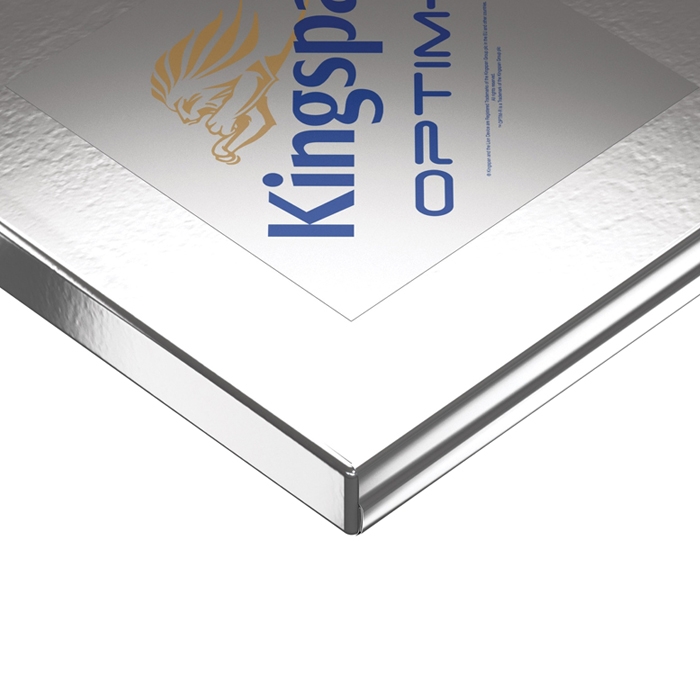

Next generation insulation solutions for floors. OPTIM-R comprises a rigid vacuum insulation panel which is evacuated, encased and sealed in a thin, gas-tight envelope, giving outstanding thermal conductivity and the thinnest possible solution for floor insulation. Ideal for situations where space is tight.
With an aged design value thermal conductivity of 0.007 W/m∙K, the Kingspan OPTIM-R Flooring System provides an insulating performance that is up to five times better than other commonly available insulation materials.
Thickness: 30mm.
Thermal conductivity: 0.007 W/mK.
Facings: vacuum insulated panel.
Length: 300mm to 1200mm.
Width: 300mm to 600mm.
Please note: the price is based per m2 but we would need to know the length and width you require as this is a made to order product - please specify the length and width required in the 'special instructions' section of the checkout process.

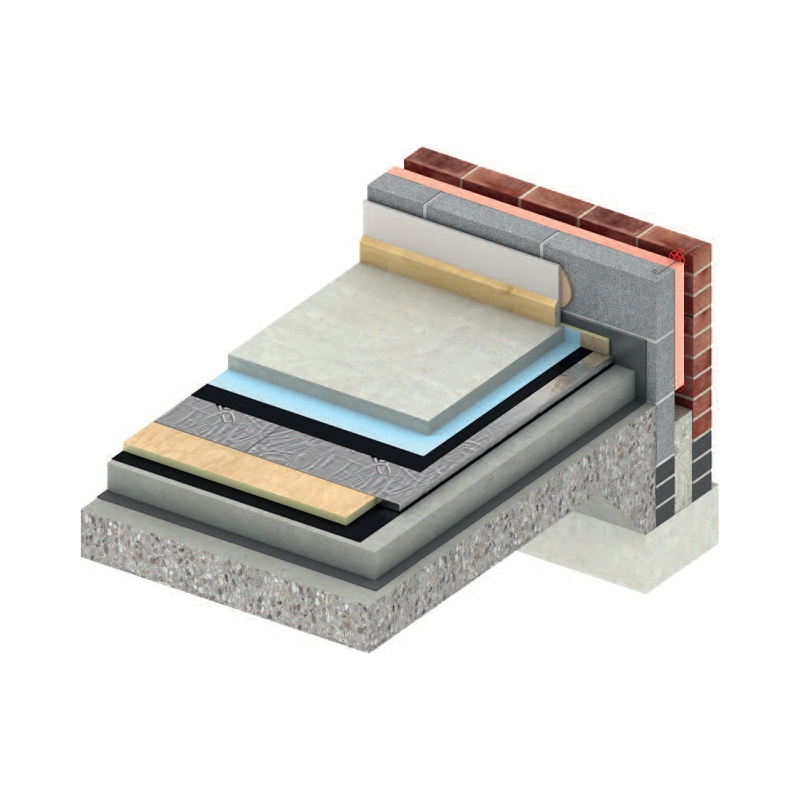

The OPTIM-R Flooring System is made up of vacuum insulated panels accompanied by rigid thermoset infill panels which can be cut to fit around problem areas such as penetrations or load bearing walls.
In retrofit applications the System provides solutions for areas that previously would have remained un-insulated because of insufficient space available or because the excavation of material is impractical.
In new constructions the Kingspan OPTIM-R Flooring System can significantly enhance U-values in areas that would otherwise be accepted as denigrating the overall thermal performance.
