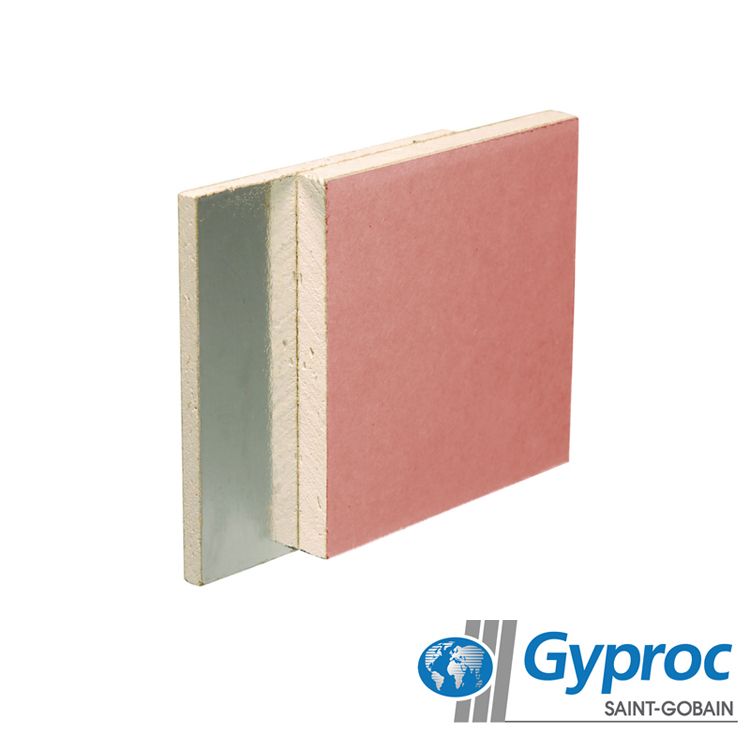

Gyproc Fireline Duplex Board Tapered Edge - 2.4m x 1.2m x 12.5mm

Product Code:
822767
Brand:
Est. Delivery: TBC*

* COVID-19: Due to supplier issues this product isn't currently available to purchase.

£20.41 Incl. VAT
£17.01 Ex. VAT
Oops! Please select from the options

Product Description

Gyproc Fireline backed with a vapour control membrane, which combines a high fire performance lining with vapour control. Used in British Gypsum, partition, wall lining and ceiling systems to give increased fire protection with vapour control. Also used for protection to structural steel.

Gypsum plasterboard with glass fibre and other additives in the core backed with a vapour control layer. Gyproc Fireline duplex consists of an aerated gypsum core with glass fibre and other additives encased in, and firmly bonded to, strong paper liners and backed with a metalised polymer of polyethylene film. Gyproc Fireline duplex is a plasterboard that is suitable for drylining internal surfaces.

This plasterboard is one of the products within our plasterboard range that is certified to BES 6001 achieving a rating of ‘Excellent’.

Properties

Length: 2.4m.
Width: 1.2m.
Thickness: 12.5mm.
Weight: 9.8kg/m2.
Fire rating: class 1 both sides - BS 476.
Thermal resistance: 0.39 m²K/W.
Thermal conductivity: 0.24 W/mK.
Face: pink face paper.
Metalised polyester film reverse.

Application

Fixing:

Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges. Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper.

Stagger horizontal and vertical board joints between layers by a minimum of 600mm. Locate boards to the centre line of framing where this supports board edges or ends.

Plastering:

The face (pink) of Gyproc Fireline duplex can be plastered with either Thistle BoardFinish or Thistle MultiFinish. There should be the minimum of delay between completion of the lining and the commencing of plastering.

Jointing:

Gyproc jointing materials produce durable joint reinforcement and a smooth, continuous, crack-resistant surface ready for priming and final decoration. A number of jointing specifications are available to suit the board type, method of application, and site preference.

Decoration:

After the joint treatment has dried, decoration, including any decorator’s preparatory work, should follow with the minimum delay.

Cutting:

This product may be cut using a plasterboard saw or by scoring with a sharp knife and snapping the board over a straight edge. Holes for switch or socket boxes should be cut out before the boards are fixed using

Dimensions

Width 1200mm Length 2400mm Thickness 12.5mm

Details

Facing Plasterboard Application Internal Walls Material Gypsum Features Vapour Control Edging Tapered Edge
