Glidevale AH6 Part L Lockable Hinge Down Fire Rated Loft Hatch - 540mm x 520mm

Code:

GVAH61HFRPLLOCK

Brand:

Glidevale

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

View full product details

View questions about this product

Create a wishlist

Colin.

Description

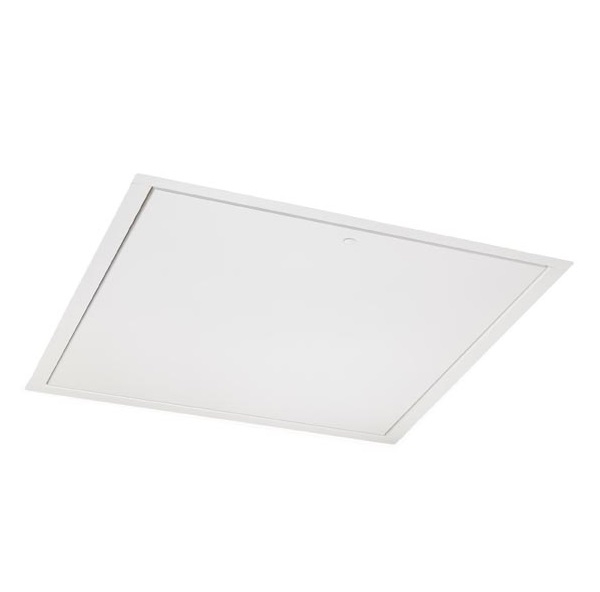

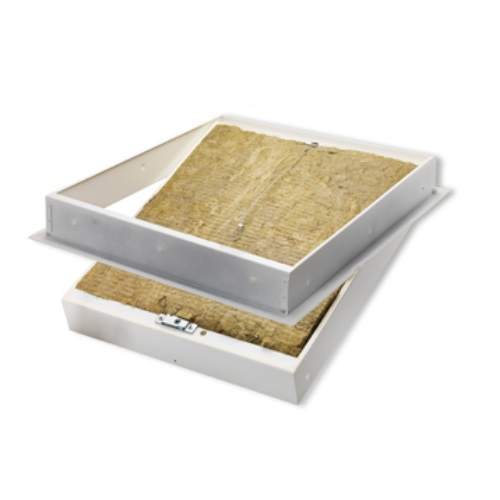

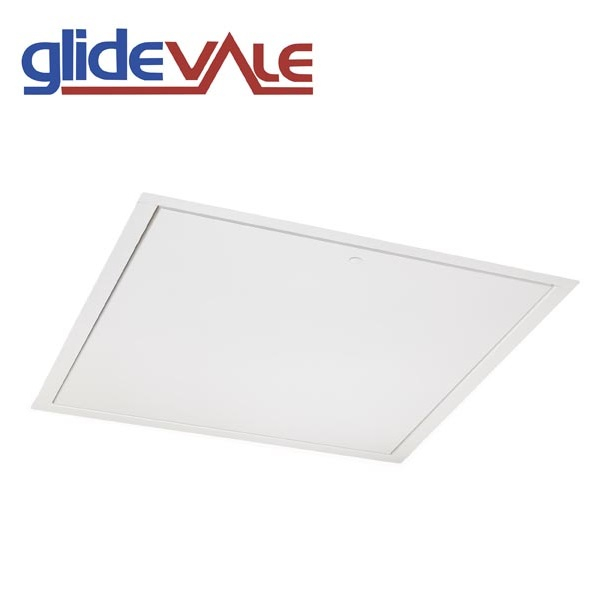

Glidevale AH6 loft hatches are hinged to drop down from the ceiling and they’re manufactured to meet regulation for 1 hour of fire rating. The door and the frame of this loft hatch are made from 1mm and 1.2mm thick electro-galvanised steel whilst the hatch is filled in with insulation to offer 0.35 W/m2K. The hatch is polyester powder coated in white to maintain an unobtrusive and sleek finish no matter where it’s installed.

Zintec, the galvanised steel that this AH6 fire-rated loft hatch is made from, is certified as limited combustibility so it satisfies the requirements of relevant Building Regulations. In a standard construction this hatch will provide 1 hour of fire resistance, as verified by independent tests. Boasting Class 0 spread of surface flame in accordance with relevant Building Regulations, Glidevale AH6 can be locked with a concealed and key-operated lock for zero tampering.

Glidevale loft hatches offer a full loft hatch system which seals to the ceiling. The thermally insulated hatch continues the loft insulation or ceiling insulation to reduce heat loss. Seals also works towards reducing the risk of condensation as they reduce water vapour migration.

Glidevale AH6 Part L Lockable Hinge Down Fire Rated Loft Hatch Specification

Accessible Clearance Opening: 540mm x 520mm
Trimmed Opening Size: 647mm x 547mm
Operation: Hinge Down

Specification

Dimensions

Length 520mm Width 540mm

Details

Product Type Loft Door Fire Protection Up to 60 minutes Colour White Opening Type Hinged

Downloads

Fitting Instructions

Questions & Answers

Question:

What kind of lock is used for the AH6 lockable?

Answer:

A high security lock is fitted to the AH6 with a key that is bespoke to each individual hatch.

Question:

What fire properties does the AH6 have?

Answer:

The AH6 provides a Class 0 surface spread of flame due to the limited combustibility of the Zintec. The AH6 also has a 1 hour fire resistance rating. They are usually specified in buildings with more than two and a half floors.

Question:

Is the AH6 air-tight?

Answer:

The AH6 comes with efficient air and vapour seals to comply with BS 5250, Approved Document C, Robust Details 2002 and the recommendations of the BRE Digest 270 and BRE IP4/06.

Question:

What is the hatch made of and what colours does it come in?

Answer:

The door and frame are formed from 1mm and 1.2mm Zintec electro-galvanised steel with a polyester powder coating in white.

Question:

What are the dimensions of the AH6?

Answer:

The frame of the hatch is 647mm x 547mm with an accessible opening of 540mm x 520mm. All models meet the NHBC minimum opening sizes. (NHBC Standards 7.2-D14)
