CircofloPro Water Underfloor Heating Kit 180m2

Name: CircofloPro Water Underfloor Heating Kit 180m2
Brand: Circoflo
SKU: CFP-KIT0180

Code:

CFP-KIT0180

Brand:

Circoflo

This item is out of stock and not available to purchase.

View alternative products

Straightforward to install, this CircofloPro water pipe underfloor heating system includes smaller manifolds which can be discreetly positioned and concealed from sight inside walls or cupboards. Evenly spaced at 133mm centres, the ultra-flexible 12mm pipes ensure that warm up...Read More

View full product details

View questions about this product

Create a wishlist

Phil Newman, Bridport.

Description

In comparison to standard radiator systems, this Circoflo underfloor heating system is safer, more energy efficient and cheaper to run due to running off the boiler and its use of a lower flow temperature. This ensures you can save money on your energy costs. Building regulations necessitate independent room temperature control, therefore, it is recommended that you should install one thermostat per room with common sense used for small WCs off hallways etc.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 180m2

Range of floor fitting types available
Straightforward to install and control
Energy efficient and cost-effective
Small manifolds
180m² coverage
Safer due to lower surface temperatures
Space-saving
Independently tested

Increasing in popularity for warming up your home, this underfloor heating system can eliminate the requirement for radiators which take up space so you can have more room to keep your furniture and appliances. Used in combination with a range of varying floor materials such as laminate, slate and carpet, it can help create a comfortable and warm setting within your home. However, it is always recommended to check that your specific flooring material is compatible.

Circoflo Kit Contents

2 x 3 port manifold with pipe connectors
3 x 4 port manifold with pipe connectors
1 x mixing unit including pump
5 x 4 zone 230V hard-wired wiring centre
18 x 90m coil of 12mm x 1.4mm PERT UFH pipe
18 x 230V actuator valve for manifold

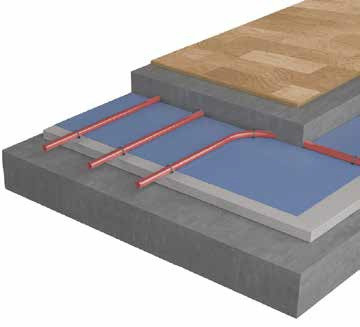

For screed staple floors you will also get Circoflo:
9 x 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
8 x expansion foam with gaiter - 25mm x 145mm x 11mm

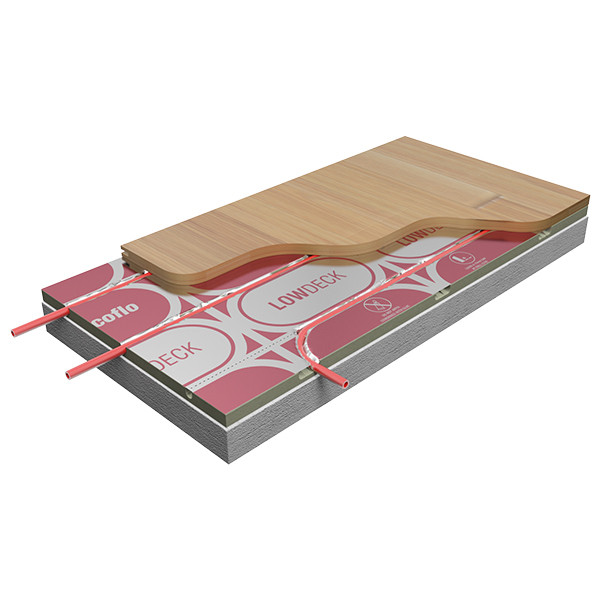

For retrofit wooden floors you will also get:

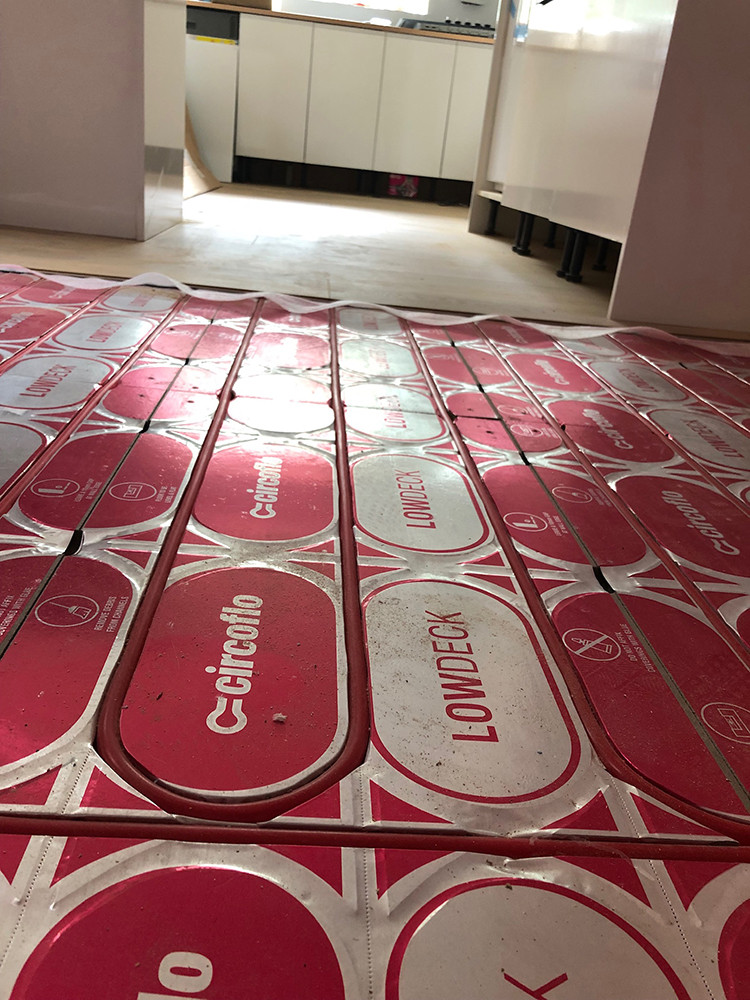

119 x LowDeck Boards
For retrofit vinyl floors you will also get Circoflo TileDeck:
74 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
24 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
38 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
171 x Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex

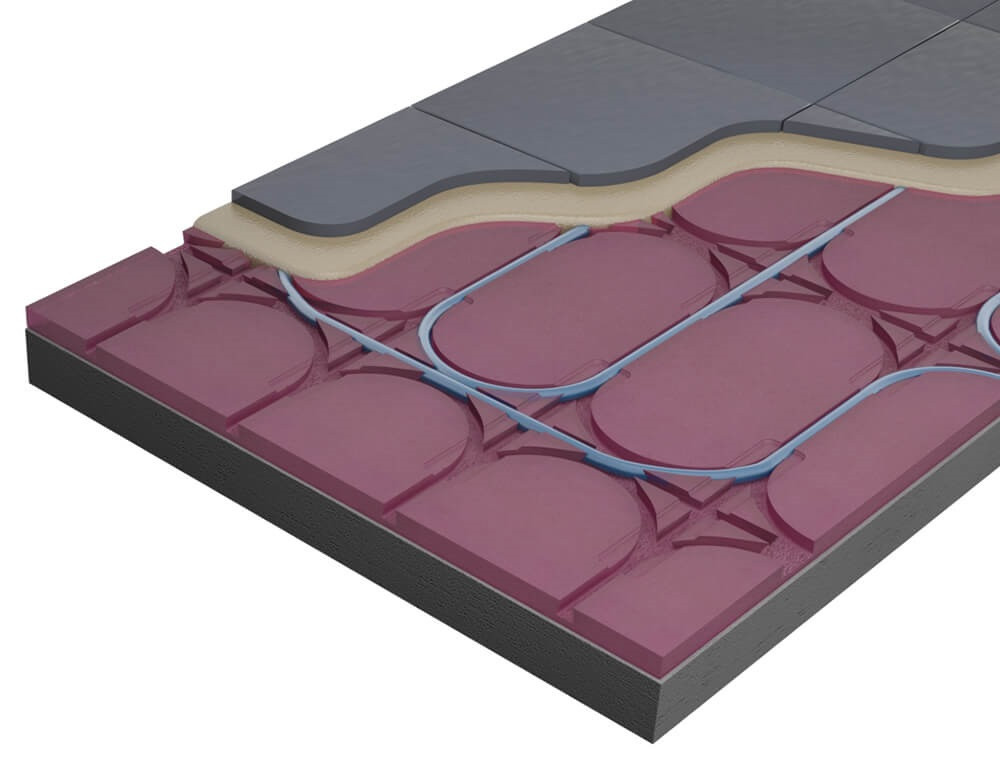

For retrofit tiled floors you will also get Circoflo TileDeck:
74 x Low build up UFH panels for tiles and vinyl - 8no. 18mm x 800mm x 400mm
24 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
38 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
108 x Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex

Please note:

Circoflo kits are supplied in panels which are sized 800mm x 400mm. There is a suitable number of panels included to meet the m² coverage of this kit.
This kit does NOT come with a CircofloPro Underfloor Heating Thermostat included as standard.
For information on how to create your own bespoke CircofloPro quote that is completely specified to your project, call our team of insulation experts.

Specification

Details

Underfloor Fitting Type Retrofit Tiled
Retrofit Vinyl
Retrofit Wooden
Screed Staple
