As the focus on reducing emissions and improving energy efficiency grows, insulating the pipes within a building has become more important.

Although often forgotten about, insulating pipes within your home can not only reduce your energy bills but also help to keep your home warmer and more efficient and avoid issues that can become costly.

The best part? Insulating a pipe isn’t as difficult as you might imagine at first.

With that in mind, let’s find out how to insulate a pipe!


Table of contents:


Why insulate a pipe?

Insulated pipes in an industrial setting.

Insulating pipes within the home can provide several benefits, and pipe insulation can be used on both hot and cold pipes.

Let’s take a closer look at each one.

Reduce heat loss

Pipe heat loss.

On hot pipes, pipe insulation will prevent heat from being lost to the surrounding area, keeping the temperature of the water around 2 degrees higher than it would be without the pipe insulation.

This means that less energy is required to heat the water, which in turn reduces the cost of your utility bills.

Prevent freezing

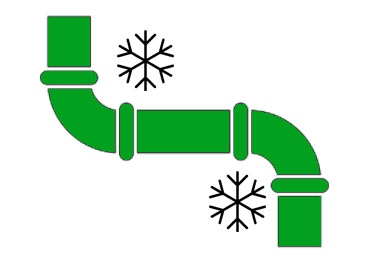

On cold pipes, pipe insulation is used to prevent the pipes from freezing during cold weather. Freezing pipes can cause several issues including cracked pipes, flooding and blocked water systems, which can all be costly to fix.Frozen pipe.

Pipe insulation on cold pipes is particularly important in exterior walls, unheated spaces such as lofts, and in below-ground applications, where pipes are more prone to freezing and harder to access.

Insulating the pipe increases the temperature of the pipe, and reduces the extent to which weather conditions can affect them, which reduces the potential for pipes to freeze.

Prevent pipe sweating

Condensation on a pipe.Pipe insulation can also be used to eliminate pipe sweating and humidity. When cold pipes come into contact with warm, humid air, the water vapour condenses on the surface of the pipe.

In turn, this creates condensation, which will drip onto the floor or other surfaces below, creating puddles and damp as well as high humidity, which can lead to mould and rot. The best pipe insulation will prevent condensation from occurring on the pipe surface, reducing pipe sweating and minimising humidity.


Which pipe insulation do I need?

There are several different pipe insulation products available to add layers of insulation to your pipes within the home or other buildings.

Polyethylene foam pipe insulation

Polyethylene foam insulation is one of the most popular forms of pipe insulation available. Polyethylene tubing is a closed-cell foam pipe insulation that is used in a range of different applications, including insulating central heating pipework to reduce heat loss, and in loft spaces to prevent freezing.

Polyethylene pipe insulation generally consists of a hollow foam tube with a slit down one side to allow it to fit over existing pipework and is considered a great choice for low cost and good performance.

CLass O Armaflex pipe insulation.

Rubber pipe insulation

Rubber pipe insulation products, such as those from Armaflex from Armacell, are a closed-cell, elastomeric rubber pipe insulating system. Most commonly used to prevent condensation and humid environments from occurring, rubber pipe insulation tends to have high water resistance. However, it can also be used for thermal insulation as it has low thermal conductivity.

As well as these features, rubber pipe insulation is relatively resistant to mould and bacteria growth which occurs in humid environments, and some rubber pipe insulation products also have anti-microbial protection built in to provide extra protection.

Self-seal pipe insulation

Self-seal pipe insulation can be manufactured from several different materials, including rubber and polyethene foam, but the key feature is that the slits down one side of the pipe insulation have self-sealing properties – most commonly in the form of self-adhesive strips. This makes the installation process quick and simple, with no adhesive needing to be applied in hard-to-reach areas.

Pipe wrap insulationPipe wrap insulation

Pipe wrap insulation can also be manufactured from a variety of materials but is installed by wrapping it around the pipe like tape, instead of fitting over as a solid form, like foam insulation.

One form of pipe wrap insulation is foil-faced bubble membrane insulation, which is supplied in a tape form. A good choice to reduce the potential of cold pipes from freezing, but can also be used to retain the heat in hot pipes.


Installing foam pipe insulation

Insulating a pipe with a sleeve of foam pipe insulation is relatively straightforward, but certain steps should be followed to ensure the pipe insulation performs well.

What you’ll need:

  • Pipe insulation
  • Tape
  • Tape measure
  • Knife

Industrial pipe insulation.

Step 1: Measuring and choosing insulation

To ensure you have the correct size of pipe insulation, measure the diameter of a visible section of pipework. Choose the size of pipe insulation that is most suitable for your pipework diameter. Then measure the length of the pipes that you’re going to insulate, to calculate how much insulation you require.

Step 2: Cutting and installing insulation

Once you’ve chosen the pipe insulation, measure the first length of pipe you’re going to be working on. Take a knife and cut the pipe insulation to the length required, then simply open the foam insulation at the ready-made slit and slide the insulation over the pipe.

To seal the insulation, either remove the strips on the self-adhesive insulation or add an adhesive. We’d also recommend using duct tape or insulating tape to secure adjacent pieces of foam pipe insulation together.

Step 3: Handling corners and bends

Once you reach a corner or bend in the pipework, there are a couple of options for installing the pipe insulation.

For 90-degree sharp bends

If reaching a 90-degree sharp bend, take the knife and cut the pipe insulation at a 45-degree angle. Then put the two pieces of insulation over each side of the 90-degree bend in the pipework, and twist them so that the two ends fit together flush. Then use duct tape or insulating tape to secure them together.

90-degree corner

For 90-degree curved bends

For a 90-degree curved bend, there is a slightly different method. Instead of cutting the pipe insulation in half, notches will need to be cut on one side of the insulation instead. The notches should be about 30 degrees and almost cut through the insulation completely but with some of the insulation remaining uncut.

There should be two notches cut out like this next to each other. Once you’ve cut the notches, fit the pipe insulation onto the pipe, with the notches on the inside of the 90-degree bend. The notches will allow the insulation to bend at the corner, and will just need sealing with tape to ensure it is secure and no heat loss occurs.

90 degree bend

Step 4: Addressing T branches

Another point at which foam pipe insulation needs cutting is at T branches within the plumbing system. To create a piece of insulation that covers a T branch, cut a 90-degree wedge out of the main section of pipe insulation. This will allow the insulation to be fitted on the main pipe with space for the other pipe to branch off.

Then, take a separate piece of insulation, and cut the end with two 45-degree angles, to form a point. This point then should fit neatly into the 90-degree cutout in the main piece of insulation. Finally, just tape the joints together to ensure no heat loss occurs.

T-branch


Installing pipe wrap insulation

Pipe wrap insulation is often seen as an easier alternative when working on insulating a complex plumbing system. This is because it is a straightforward insulation process, and pipe wrap insulation can easily fit around joints and bends without any extra work.

Here are the steps you need to follow.

Step 1: Beginning installation

To install pipe wrap insulation, tape one end of the insulation to the pipe. Then, wrap the insulation around the pipe, aiming for tight spiral loops with overlaps of half an inch or more.

Step 2: Ensuring full coverage

When installing pipe wrap insulation, it is crucial to ensure that no areas are left exposed and that the insulation doesn’t slip as you move along the pipe.

Step 3: Completing installation

When you reach the end of a pipe or the end of the insulation, simply tape the insulation into place.


Tips to ensure pipe insulation performs well

Pipe insulation around T-bend.

To ensure your pipe insulation is continuing to perform well, we recommend checking the insulation annually to ensure all areas of the pipes are covered and the insulation is still in good condition.

If needed, replace the tape that is securing the joins between pieces of insulation. Alternatively, replace sections of insulation that appear to have worn out or look damaged to keep the insulation performing well.

It is important to ensure all areas of the pipe network are insulated so that the pipe insulation is effective. Often there are gaps where pipes run through a wall or floor, and these can contribute to a loss of heat or increased risk of freezing.

So, we’d recommend filling these gaps wherever possible, using caulk, small sections of pipe insulation or even spray foam insulation.
